63
Chapter 3: Testing Logic Analyzer Performance

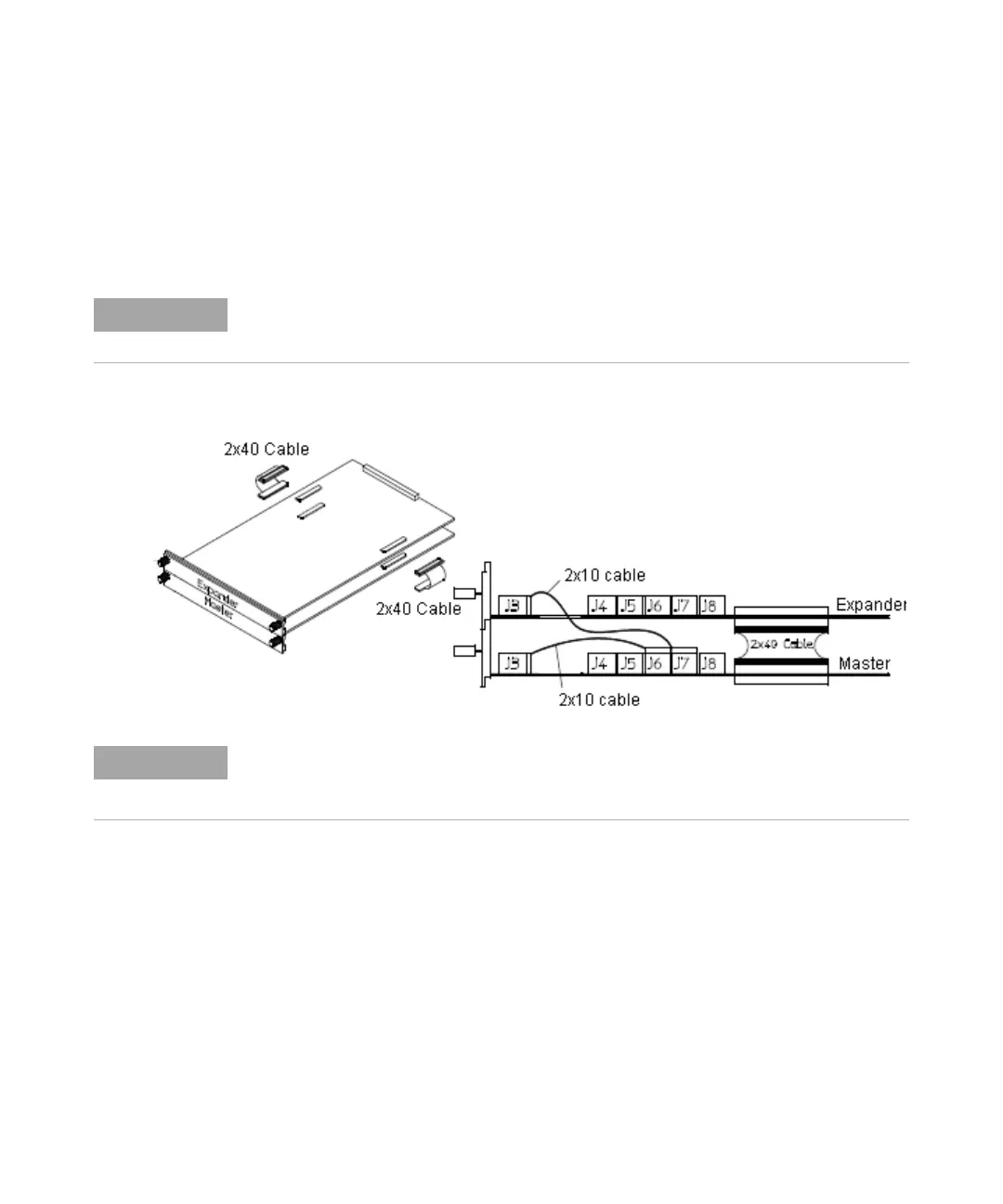

Testing the module using a 16700-series Mainframe
is complete.
Configure the 16700-Series Logic Analysis System
1 Configure the Sampling settings.
a In the Logic Analysis System window, select the 16753/54/55/56A logic
analyzer icon, then select Setup and Trigger. A Setup and Trigger
window will appear.
b In the logic analyzer Setup and Trigger window, select the Sampling tab.
c Under the Sampling tab, select Timing Zoom....
d Set Timing Zoom to Off.
e Close the Timing Zoom Controls window.
f Under the Sampling tab, select the State Mode button.
g Under State Mode Controls, ensure that “300 Mb/s / xxM State” mode is
selected. (“xxM” indicates the module’s memory depth.)
h Under Clock Setup, at the bottom of the J clock column, select the
clock edge field and set the J clock to “Both Edges”.
2 Configure the Acquisition settings.
a In the logic analyzer Setup and Trigger window, select the Trigger tab.
b Under the Trigger tab, select the Settings subtab.
clock
edge
field
