Setting Up Hardware 1
16900 Series Logic Analysis Systems Installation Guide 19

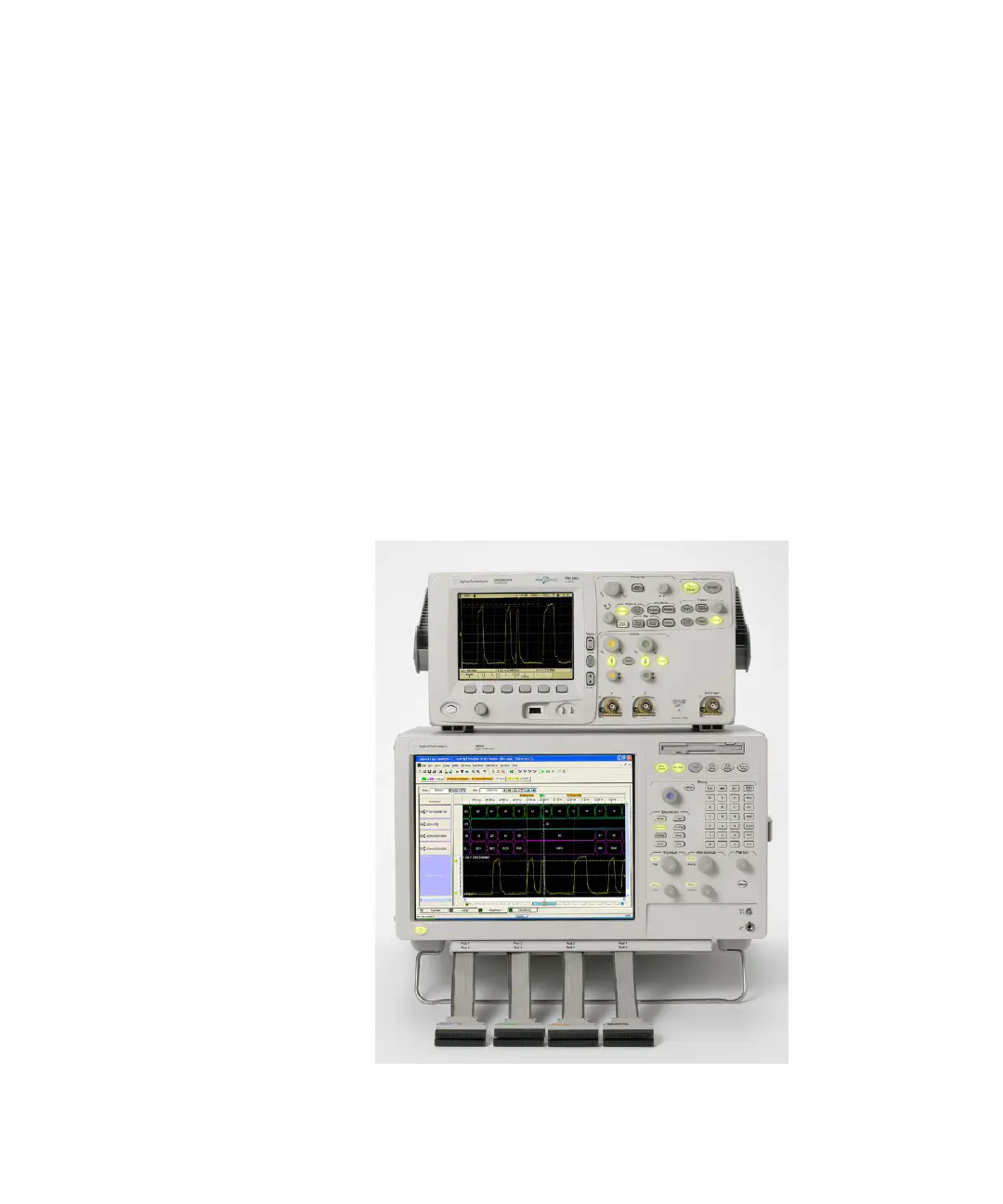

To make time-correlated measurements with an Agilent oscilloscope
You can make time- correlated measurements between an Agilent 16900
Series logic analyzer and Agilent 5000, 6000, 548xx, 8000, or 80000 Series
oscilloscopes.
Measurements between the logic analyzer and Agilent oscilloscope are
automatically de- skewed. The instruments communicate with one another
through a LAN connection and Trigger In/Trigger Out.
The instruments connect to your device under test through separate
probes, just as when they are used independently. The oscilloscope time
markers and two logic analysis system global markers are time- correlated
and track each other.
To set up and use the time- correlated connection, choose Setup>Add
External Scope... in the Agilent Logic Analyzer application.
