Instrument Overview

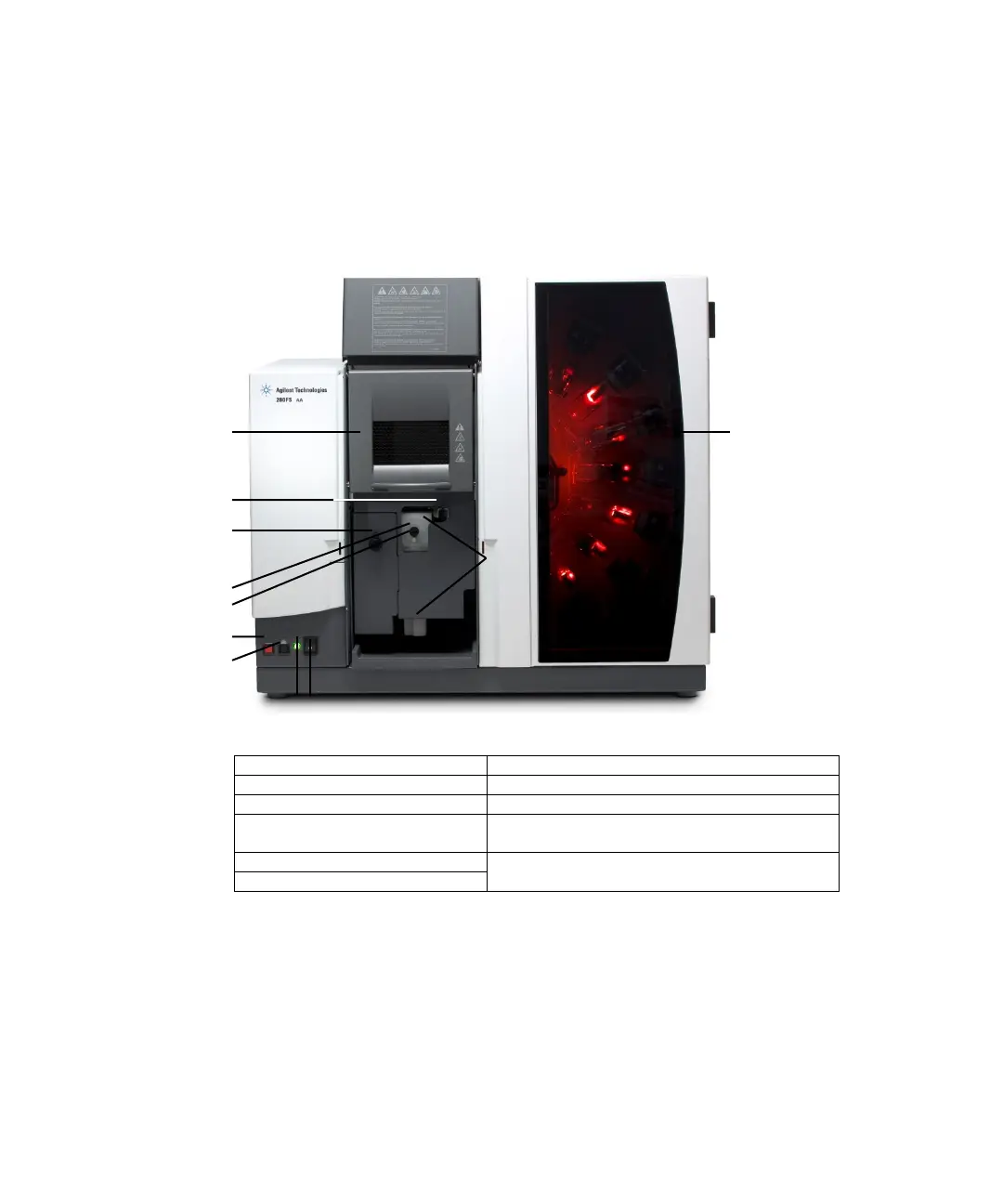

Flame instruments front view
Where:
1. Flame shield
7. Flame-on button
2. Burner adjustment handles
8. Instrument status LED
3. Burner height adjustment
9. Power switch
4. Nebulizer and flow adjustment
10. Spray chamber and liquid trap assembly
(behind the grey cover)
5. Impact bead adjustment
11. Lamp compartment (Eight lamps are shown
here. A four lamp compartment is also available.)
6. Flame-off button
