Chapter 6 Service
Disassembly
4
6

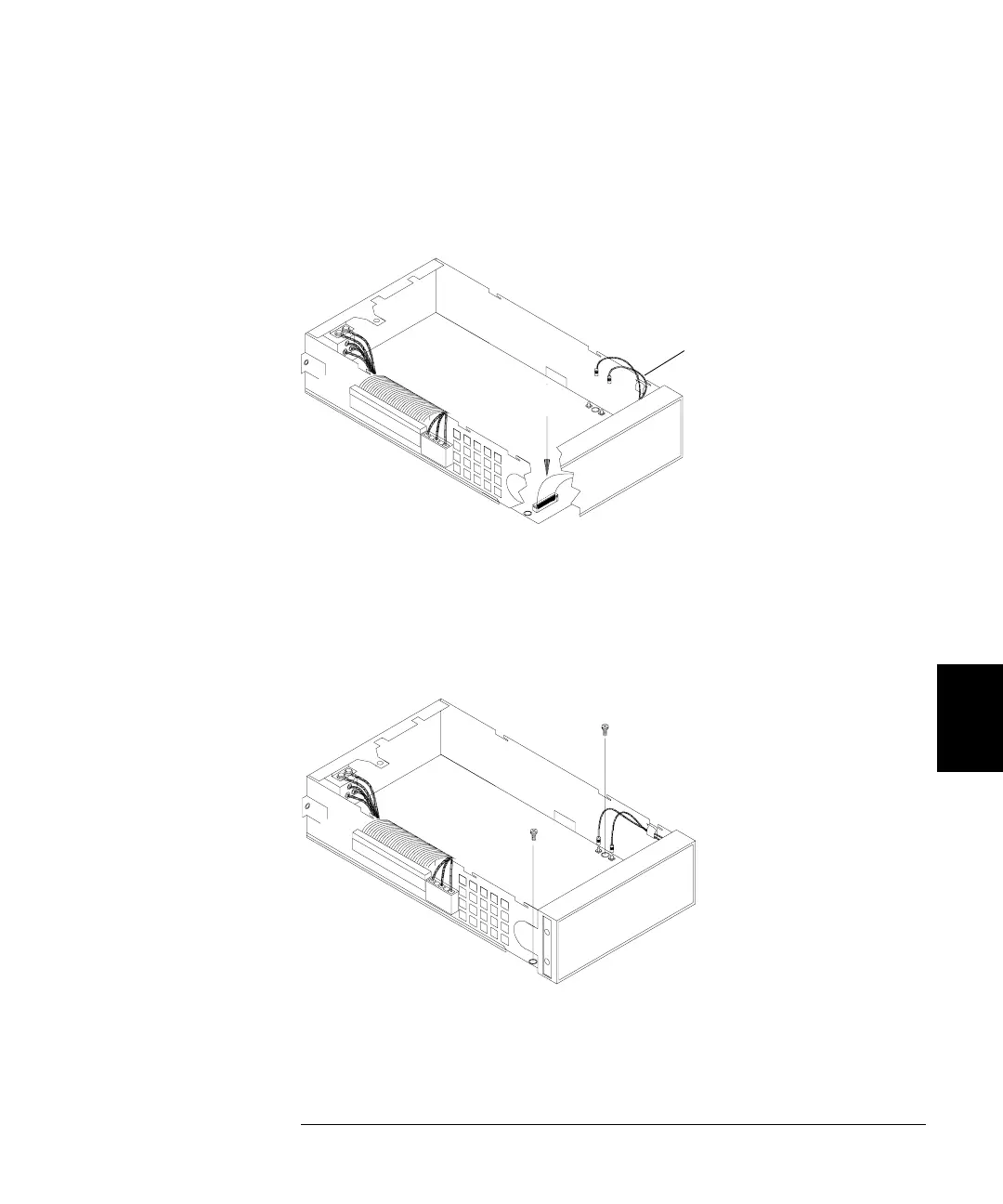

2 Pull up to remove the Sync and Output cable from the cable clip.
Disconnect the Sync and Output cable from the main board. Pull up the
clamp and disconnect the front panel ribbon cable from the main board.
3 Remove the two screws holding the front edge of the A1 assembly to
the chassis.
Ribbon Cable
Cable Clip
