Installation
Agilent Microwave Plasma Atomic Emission Spectrometers User’s Guide 27
All connections of services to the MP-AES instrument are made on
the right side of the instrument. Remove the cover by hand to gain
access to the power, USB, accessory, and gas connections. The
onboard argon bottle and regulator (if used) are also accessed via
this side cover.

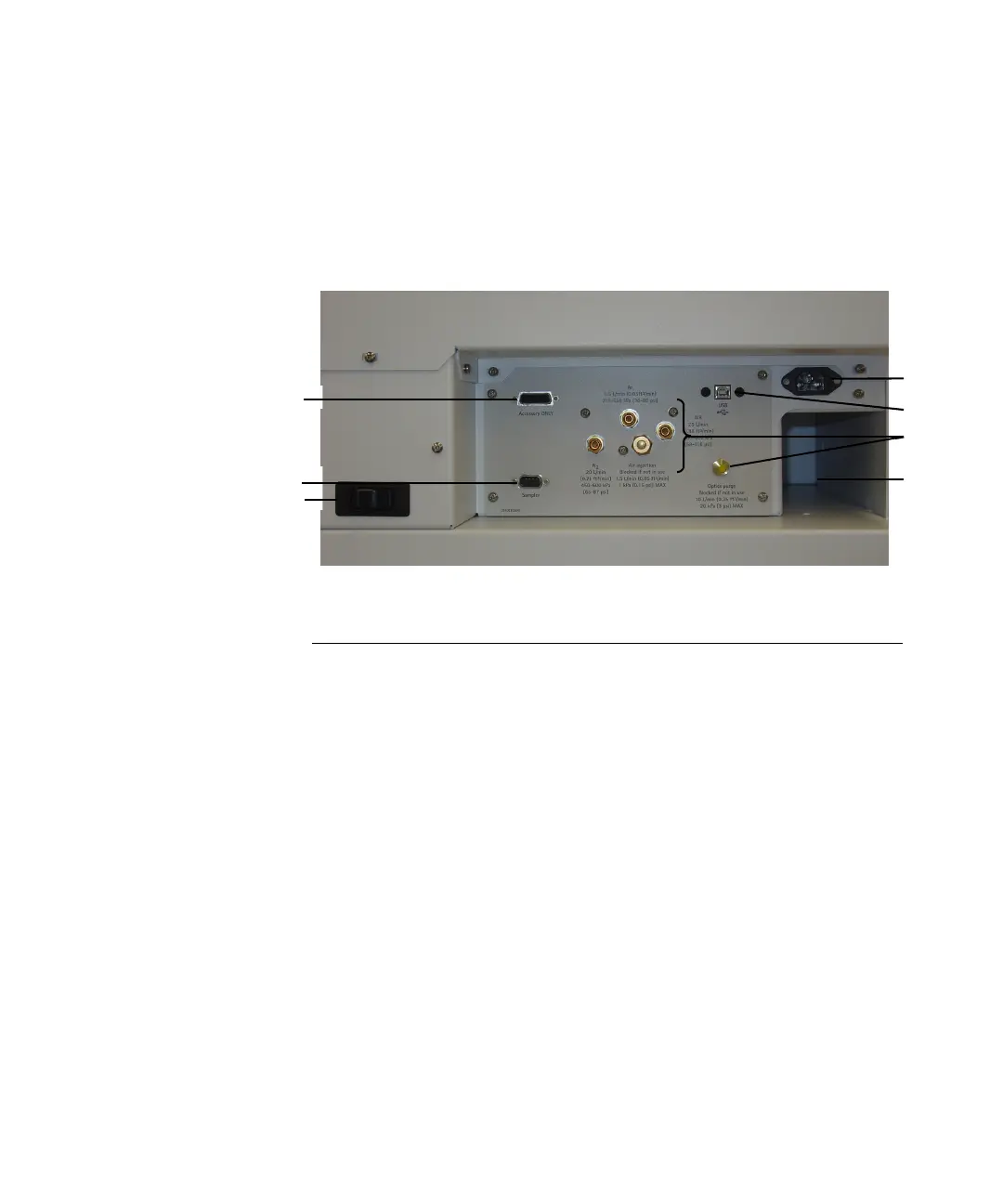

Figure 2. Input and output connections on the side of the MP-AES instrument
Item Description
1 Accessory port DA-15 receptacle
For connection of Agilent-specified accessories only
2 Sampler port DE-9 plug. RS-232 port for connection of the Agilent SPS 3
autosampler
3 Power switch Combination power switch and main circuit breaker (12 A) for
the MP-AES instrument
4 Power inlet IEC-C14 mains power inlet receptacle
Accepts IEC-C13 mains lead
5 USB port USB type B receptacle. Supports USB 2.0 Full Speed
Length of USB cable to PC is to be a maximum of 3 m (10 ft)
6 Gas inlets Connect required gas supplies
7 Onboard argon
bottle receptacle
Onboard argon bottle location
3
4
5
1
2
6
7
