2-20. Power and Signal Connections
2-21. The HP 5517B/C/D Laser Head rear panel contains an 18-pin connector used for connecting its power and
signal lines to other laser transducer system components. (Refer to Figures 2-2 through 2-8 for interconnection
diagrams for typical laser transducer systems.) Table 2-2 lists all power and signal lines that are available at the
rear-panel connectors. The laser transducer system manual gives additional system wiring information.

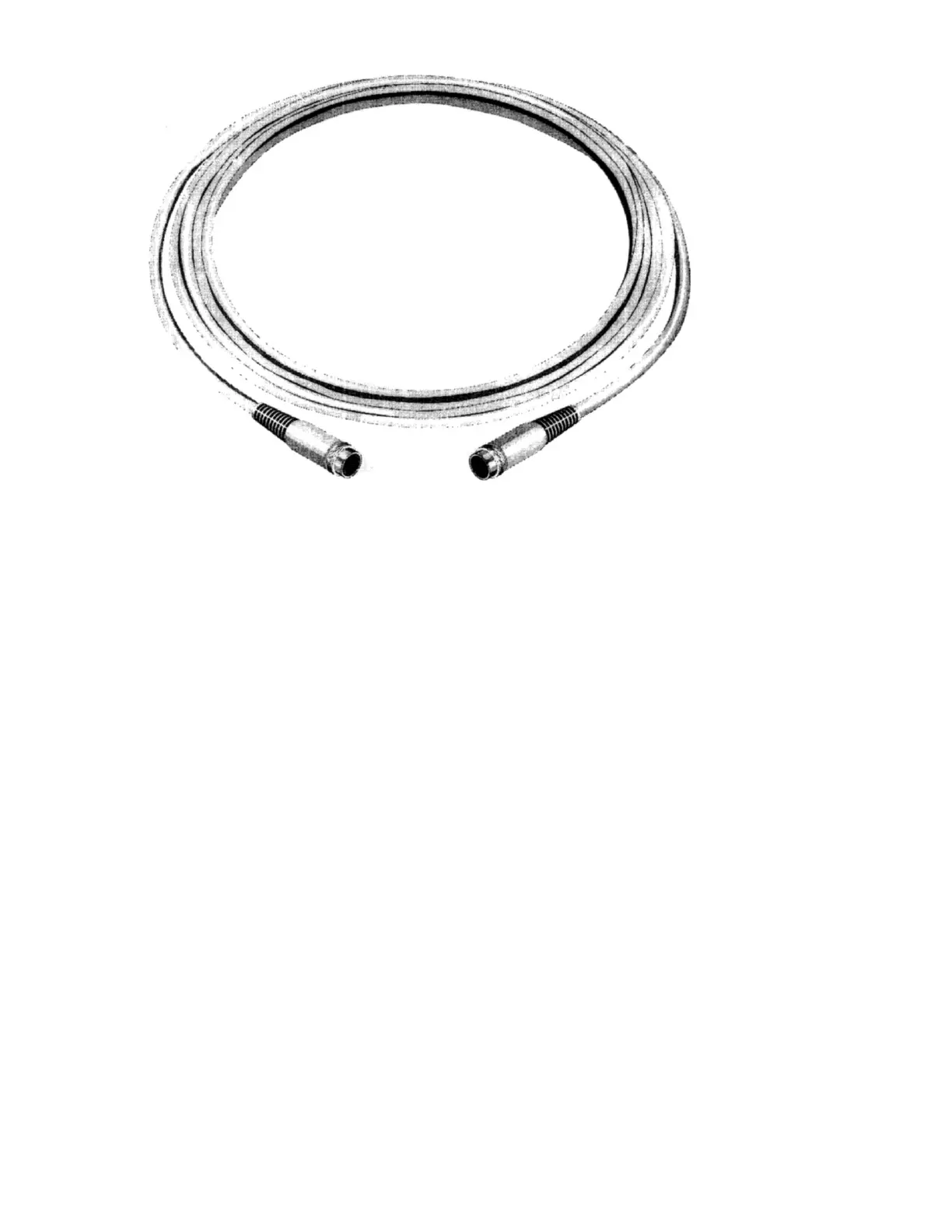

Figure 2-2. HP 10793A/B/C Laser Head
Cable
