Table 2-4. HP 5517B/C/D Laser Head Internal Fuses
Reference
Designato r
HP Part
Number
Current
Rating
Type Fuse
Fuse Voltage
Rating
Line
Location
A1F1
2110-0083
2.5
No Time Delay
250
+15 Volt
See
Figure 5-1
A1F2
2110-0027
0.12
No Time Delay
250
-15 Volt
See
Figure 5-1
A3F1
2110-0716
0.5
No Time Delay
125
+15 Volt
See
Figure 5-2
2-30. Dimensions
2-31. Figure 2-9 shows the HP 5517B/C/D Laser Head dimensions.

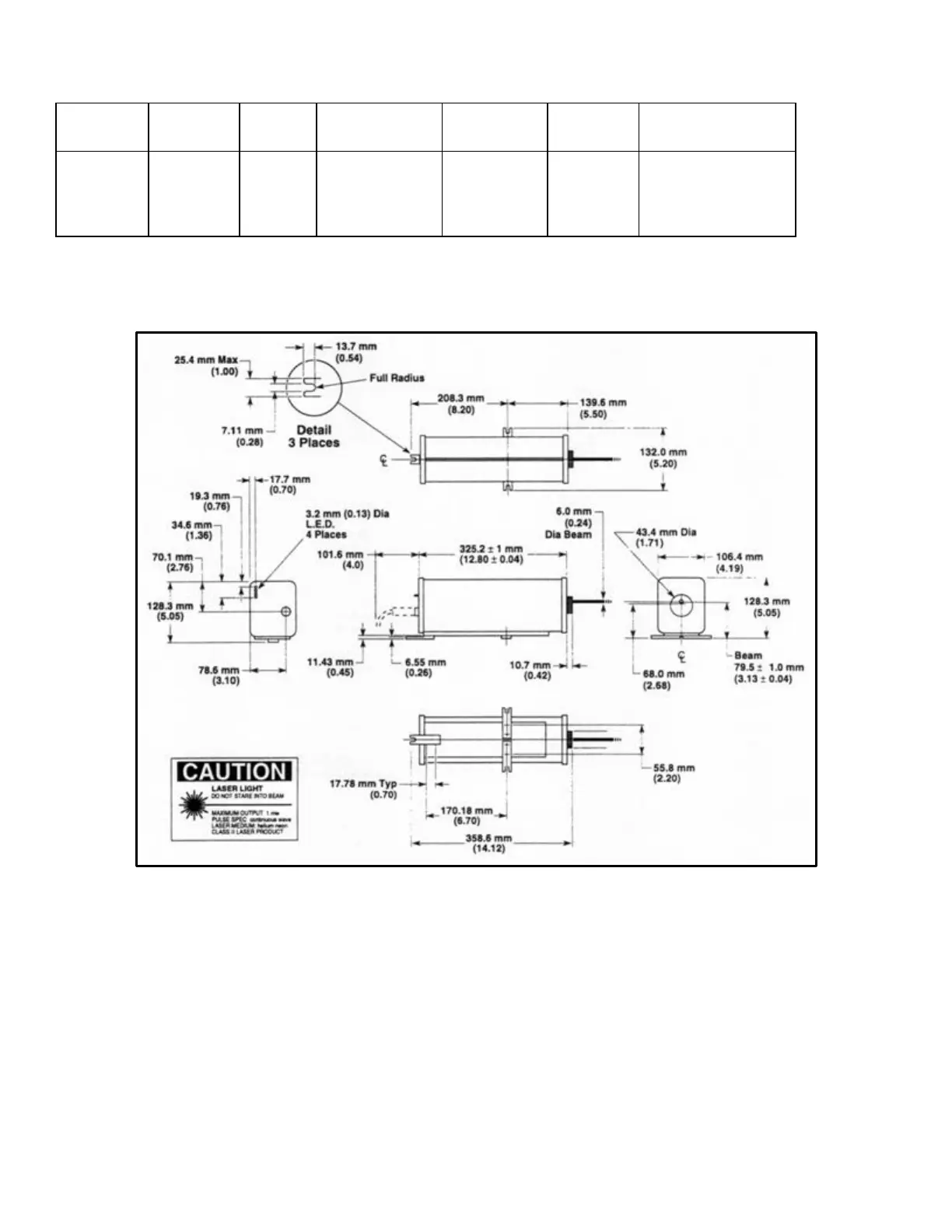

Figure 2-9. Mounting Details and Physical Characteristics
