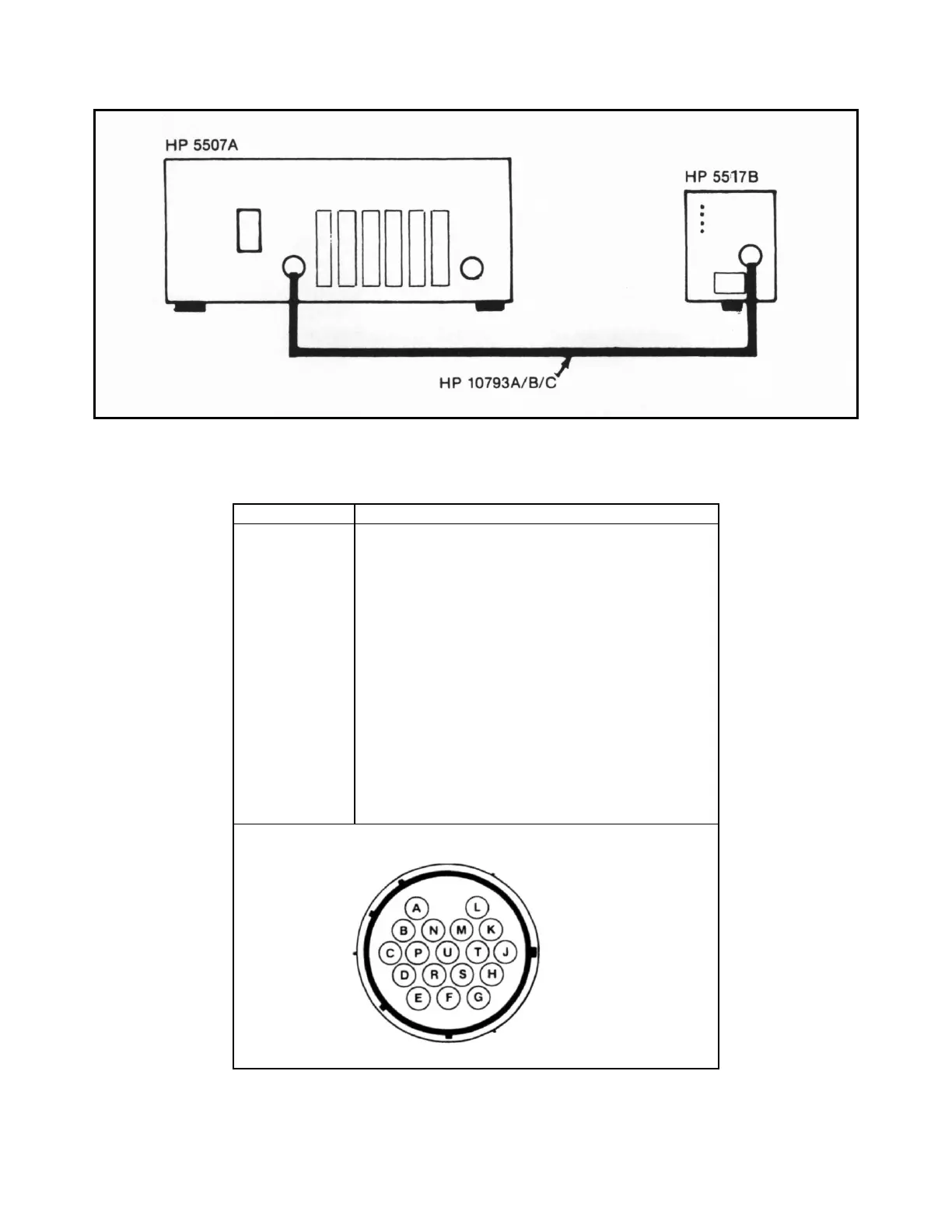

Figure 2-8. Typical HP 5527A Laser Position Transducer Connections
Table 2-2 HP 5517B Laser Head System Signal Chart
Pin Number
Signal Name
A
No Connection
B
~ MEAS (No Connection)
C
MEAS (No Connection)
D
Signal Return
E
~ REF
F
REF
G, H
Ground
I
+15V Sense
K
+ 15 Volts
L
-15 Volts
M
+15 Volts
N, P
Cable Shield
R
Signal Return
S
Ground
T
+15 Volts
U
Cable Shield
