114 5975/5977 Series MSD Operation Manual

4 General Maintenance

7 Attach the repeller assembly to the source body using the two gold plated

screws and spring washers.

8 Install the filaments using the two gold plated screws and spring washers.

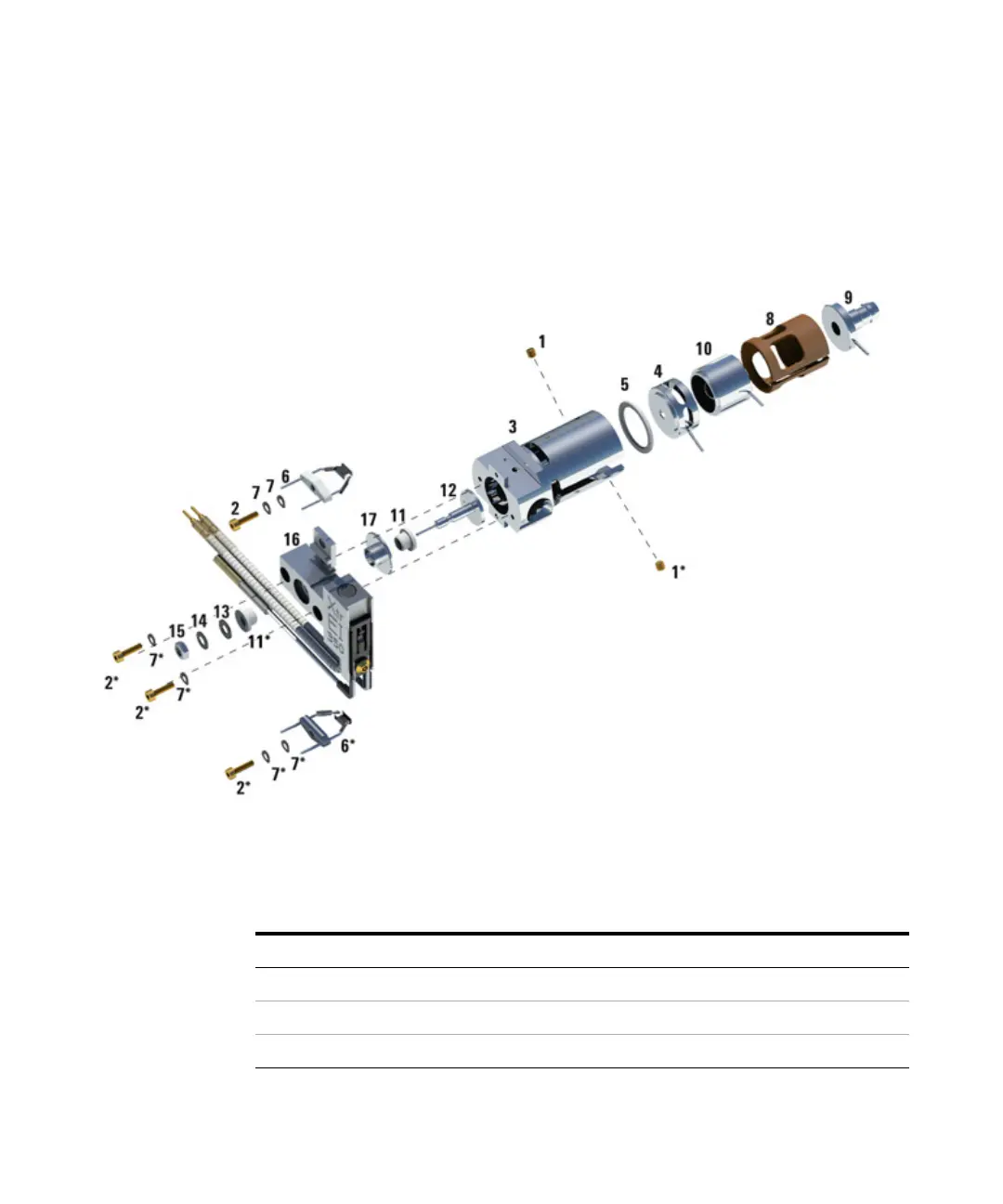

Figure 17 Assembling the extractor EI ion source

Table 22 Parts list for the extractor EI ion source (Figure 17)

Item number Item description Part number

1 Setscrews G3870-20446

2 Screws G3870-20021

3 Source body G3870-20440
