Setting Up a Clock Signal Setting Up Generic and Advanced Signals
Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002 33
Generated Signal If you attach a scope (as DUT), you can immediately see the signal.
Use the Pulse Generator’s TRIGGER OUT to trigger the scope.
To enable the trigger output:

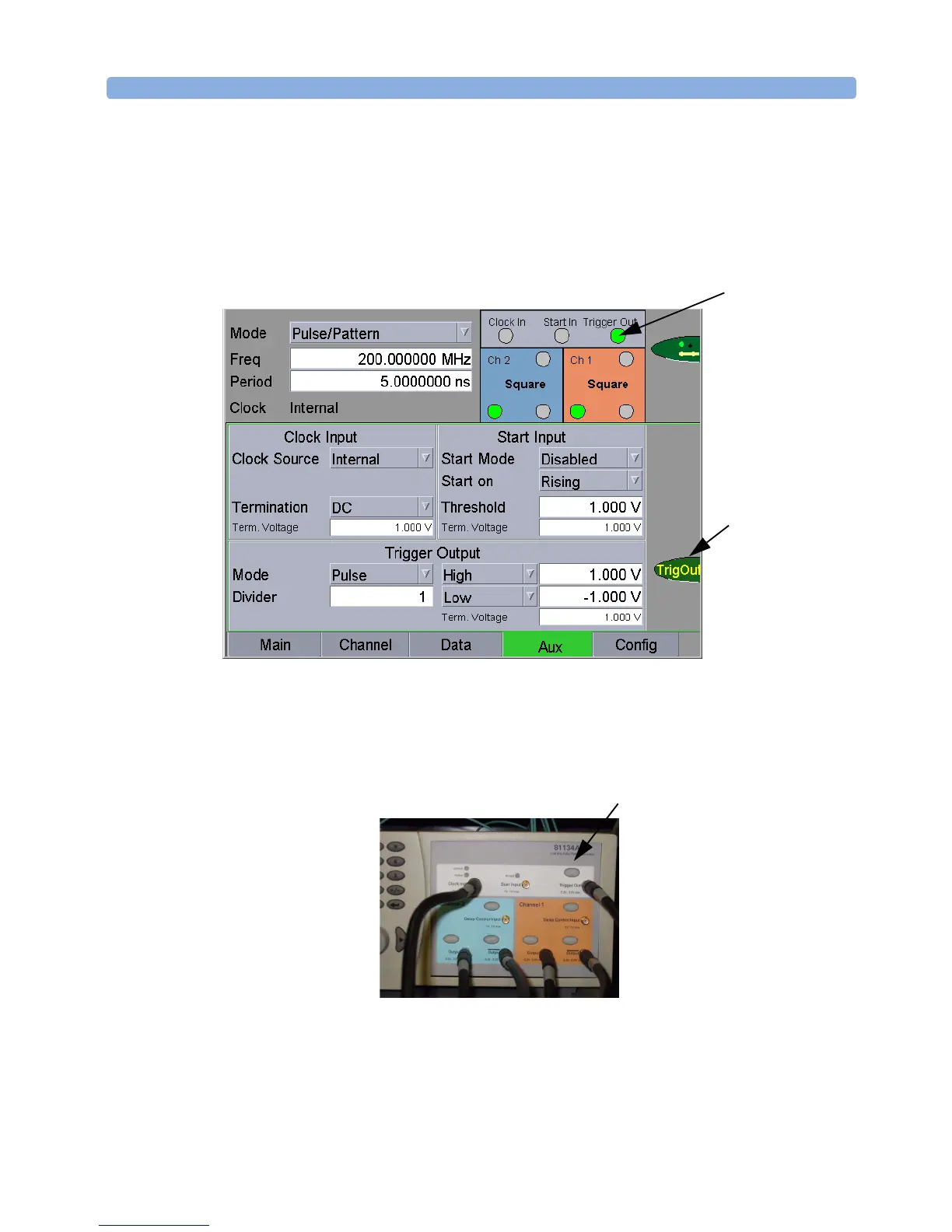

1 At the Aux page, press the TrigOut softkey function.
The green LED indicates that Trigger Out is enabled.
– OR –
Press the Trigger Out softkey next to the Trigger Out port.
TrigOut so ftk ey
function
Indicator
Trigger Out
softkey
