Signal Modes

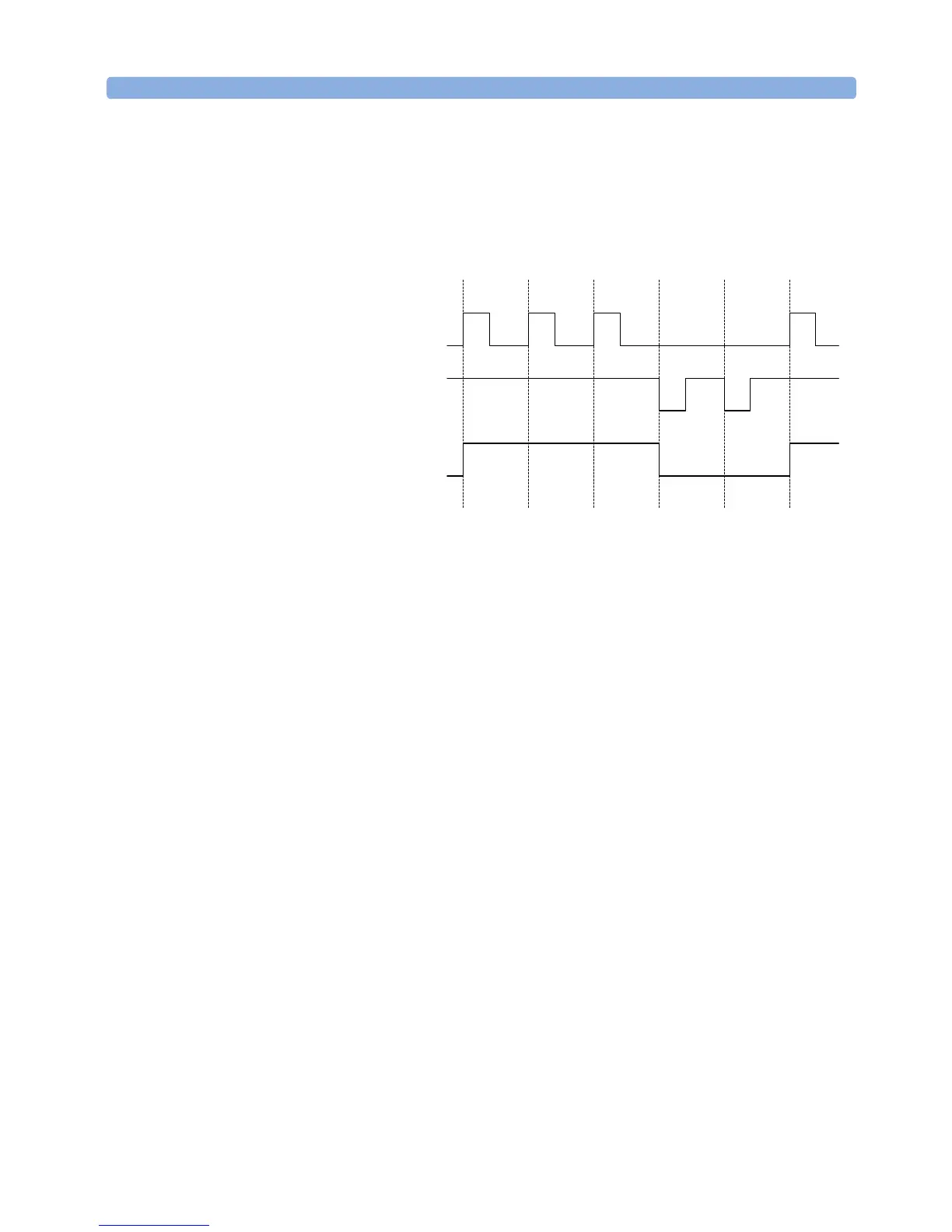

In Data and PRBS pattern modes, the pulse output format can be
selected from RZ, R1, and NRZ. The timing of the different format is
shown in the following diagram:
•RZ
Return to 0 pulse format.
On every 0 bit of the pattern, the signal remains low. On every 1 bit
of the pattern, the signal goes to high and then back to low after the
time specified by the pulse width or duty cycle parameter.
•R1
Return to 1 pulse format.
On every 1 bit of the pattern, the signal remains high. On every 0 bit
of the pattern, the signal goes to low and then back to high after the
time specified by the pulse width or duty cycle parameter.
•NRZ
Non-return to zero pulse format.
A leading edge is generated for a 0 -> 1 data transition, a trailing
edge is generated for a 1 -> 0 data transition.
111001
RZ
R1
NRZ
