Using the Agilent 81133A/81134A Pulse Generator Combining Parameters for Signal Generation
72 Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002
Variable Crossover
You can change the crossover point in range 30% … 70% of the NRZ
signal separately for each channel. The variable crossover is used to
artificially close the eye pattern, which simulates distortion.
The crossover adjustment is not calibrated except for the 50% point.

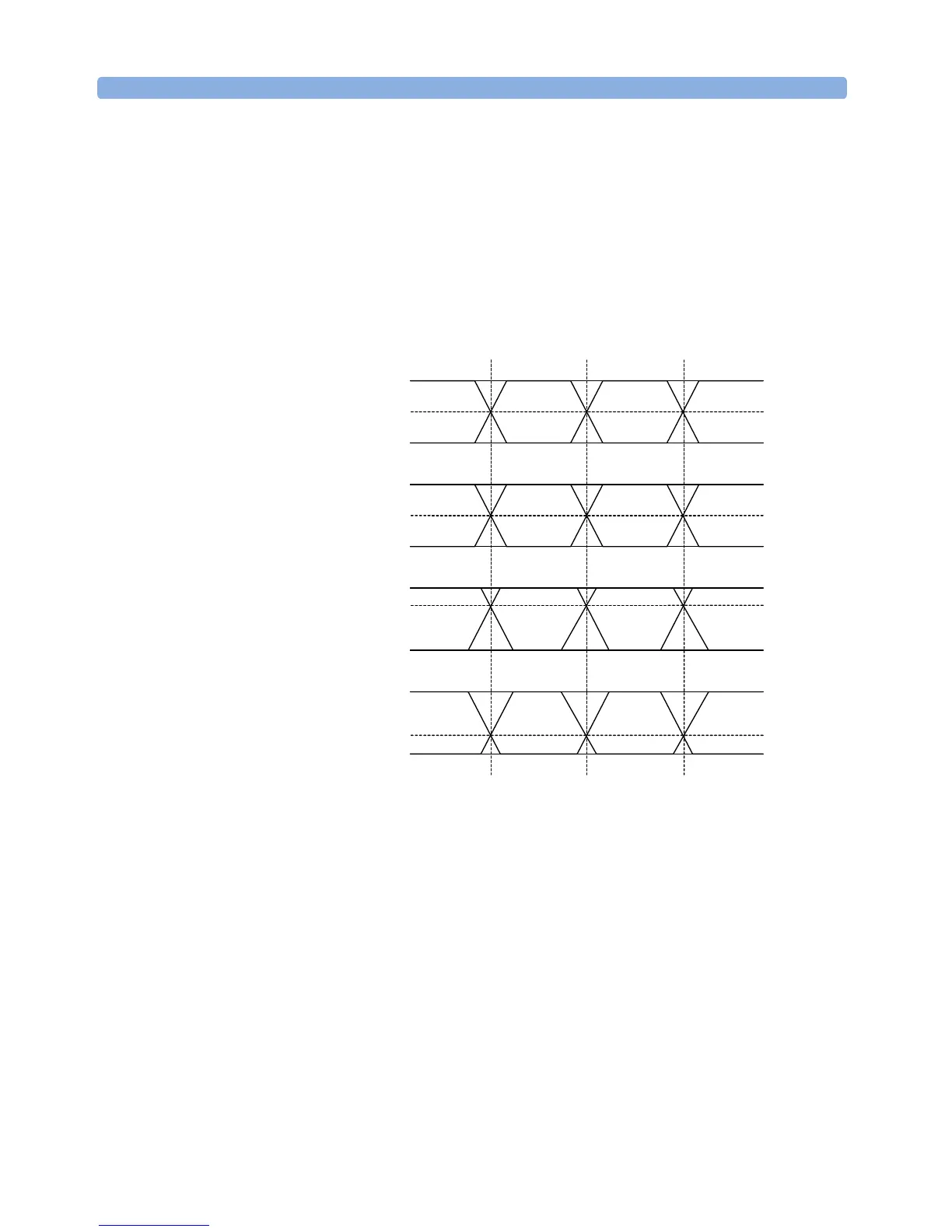

Example The figure below shows the normal and complement output with the
crossover point set to 50% and 70% respectively.
50 %
Normal
Out
50 %
Compl.
Out
70 %
Compl.
Out
Normal
Out
30 %
