Setting Up Generic and Advanced Signals Setting Up a Data Pattern
42 Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002
6 Enable the Channel 2 normal Output either:
By pressing the respective softkey in the user interface.
– OR –
By pressing the normal Out softkey for channel 2 next to the Output
port.

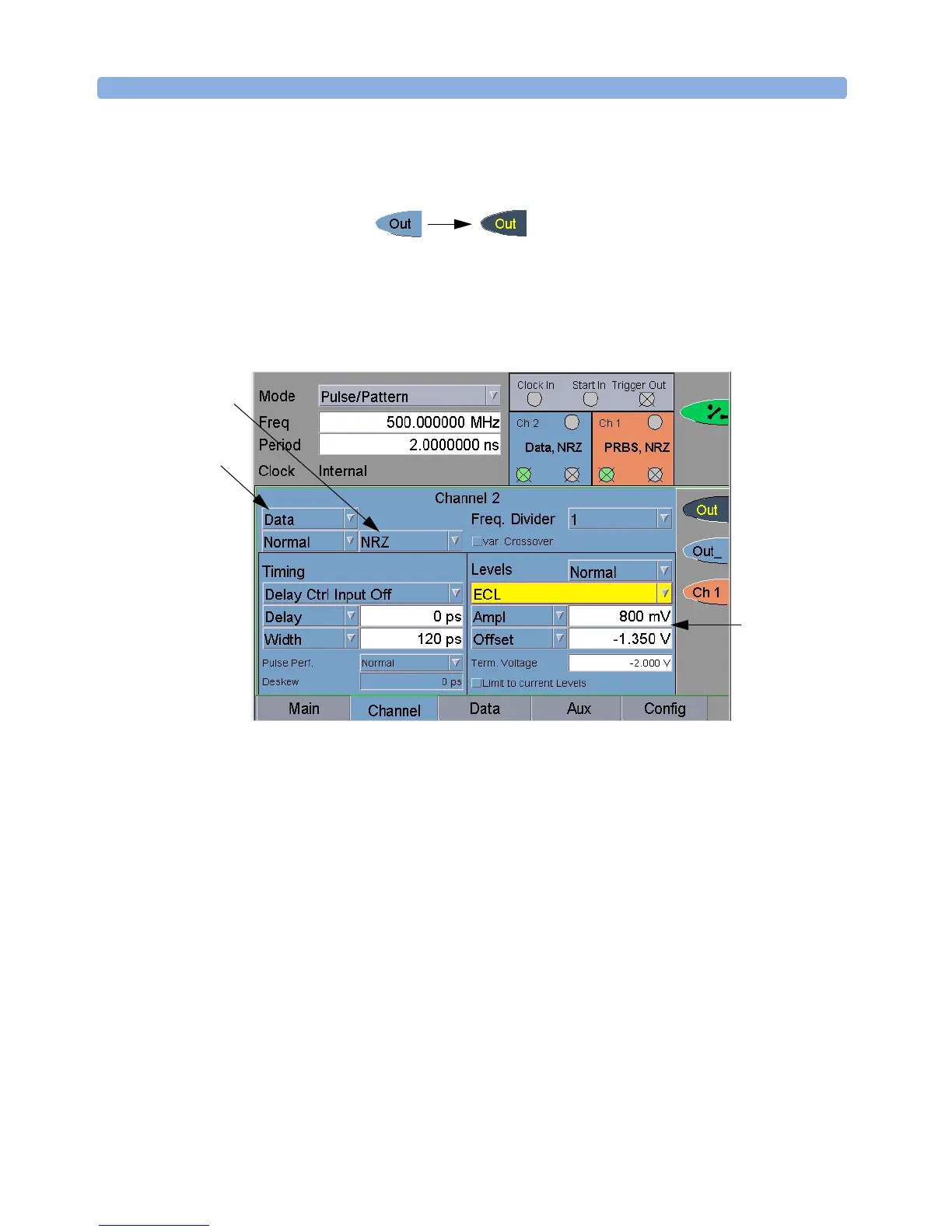

The Channel page now looks as follows:
Data Settings for the Pattern Signal To set the data pattern:
1 Switch to the Data page.
2 Enter a Data Length of 32 bits.
3 Switch to the Numeric Edit Mode.
4 Enter the data pattern via the keypad for channel 2.
Pattern Mode
Data
Pulse Type NRZ
ECL Levels
