Setting Up Generic and Advanced Signals Setting Up a Data Pattern
44 Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002
2 Enable the trigger output.

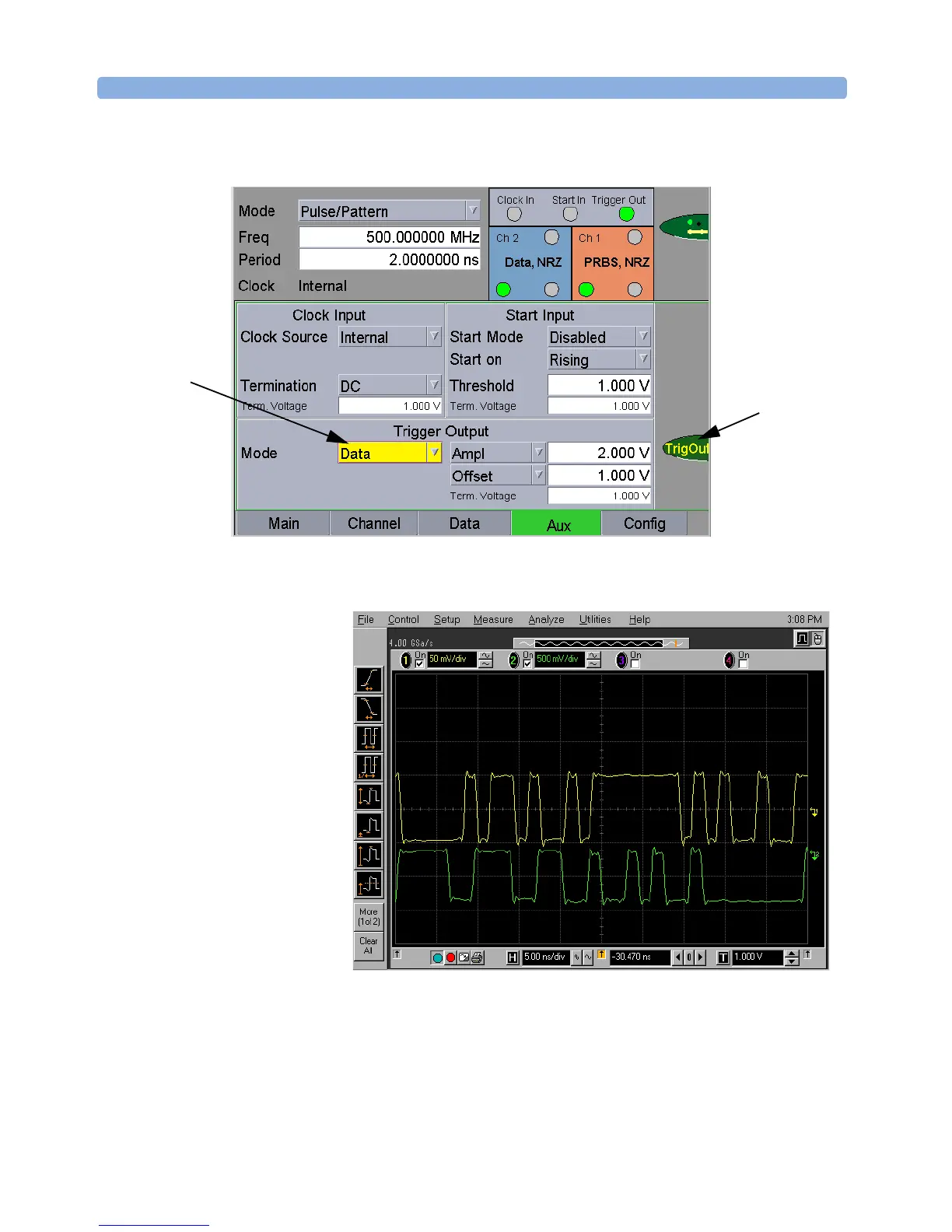

The signals as displayed on a standard oscilloscope are depicted
below.
Trigger
Mode
TrigOut softkey
function
