Setting Up a Burst Signal Setting Up Generic and Advanced Signals
Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002 47

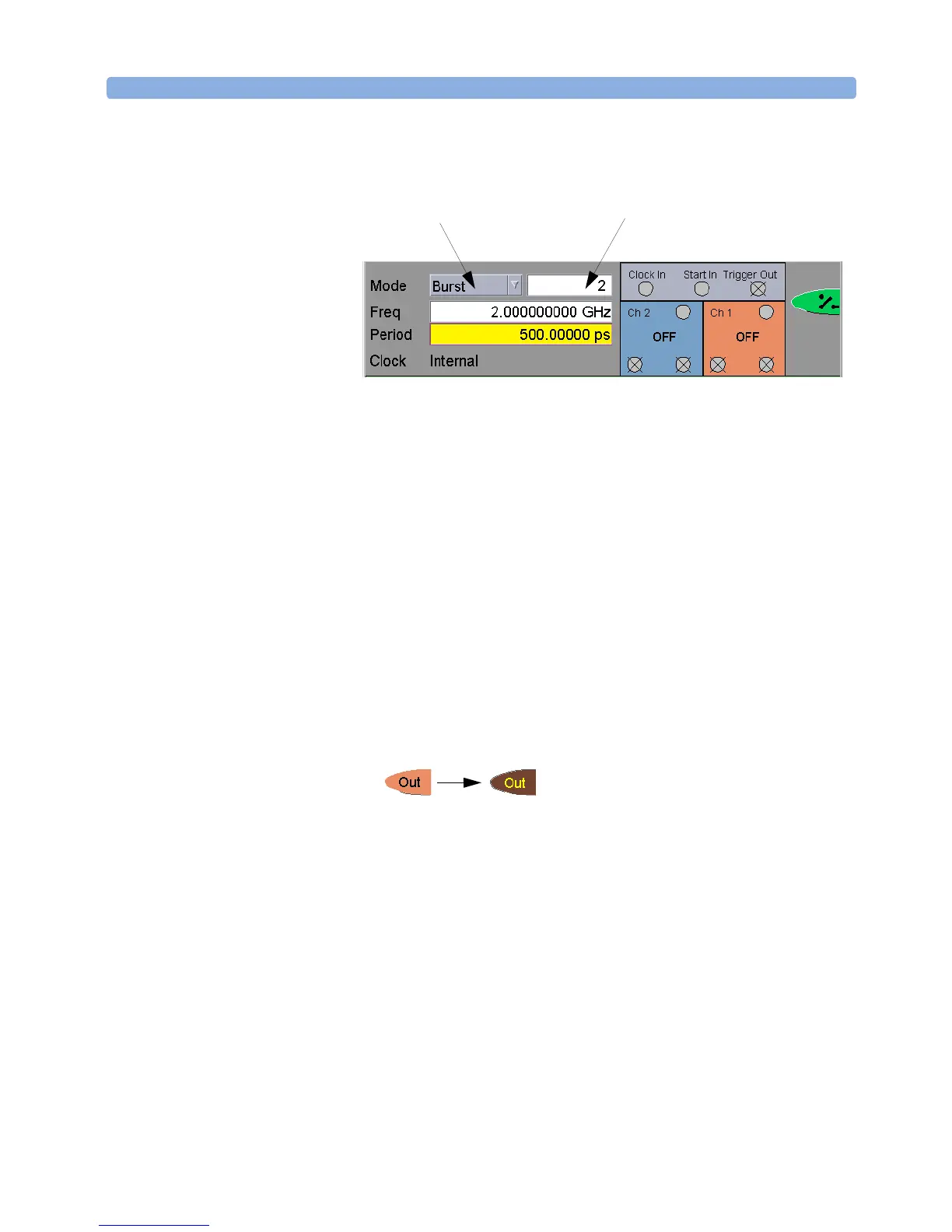

The instrument panel now looks as follows:
Channel Settings for the PRBS Signal To set the channel parameters:
1 Switch to the Channel page.
2 Set the signal mode to RZ.
3 In the Timing panel:
–Switch from Dcycle to Width and set the Width to 100 ps.
–Set the Delay to 50 ps.
4 In the Levels panel, set:
– The level format to Custom.
– Amplitude to 2.0 V.
– Offset to 0.0 V.
5 Enable the Channel 1 normal Output:
By pressing the respective softkey in the user interface:
– OR –
By pressing the normal Out softkey for channel 1 next to the Output
port.
Burst RepetitionInstrument
Mode
