Setting Up Generic and Advanced Signals Setting Up a Burst Signal

50 Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002

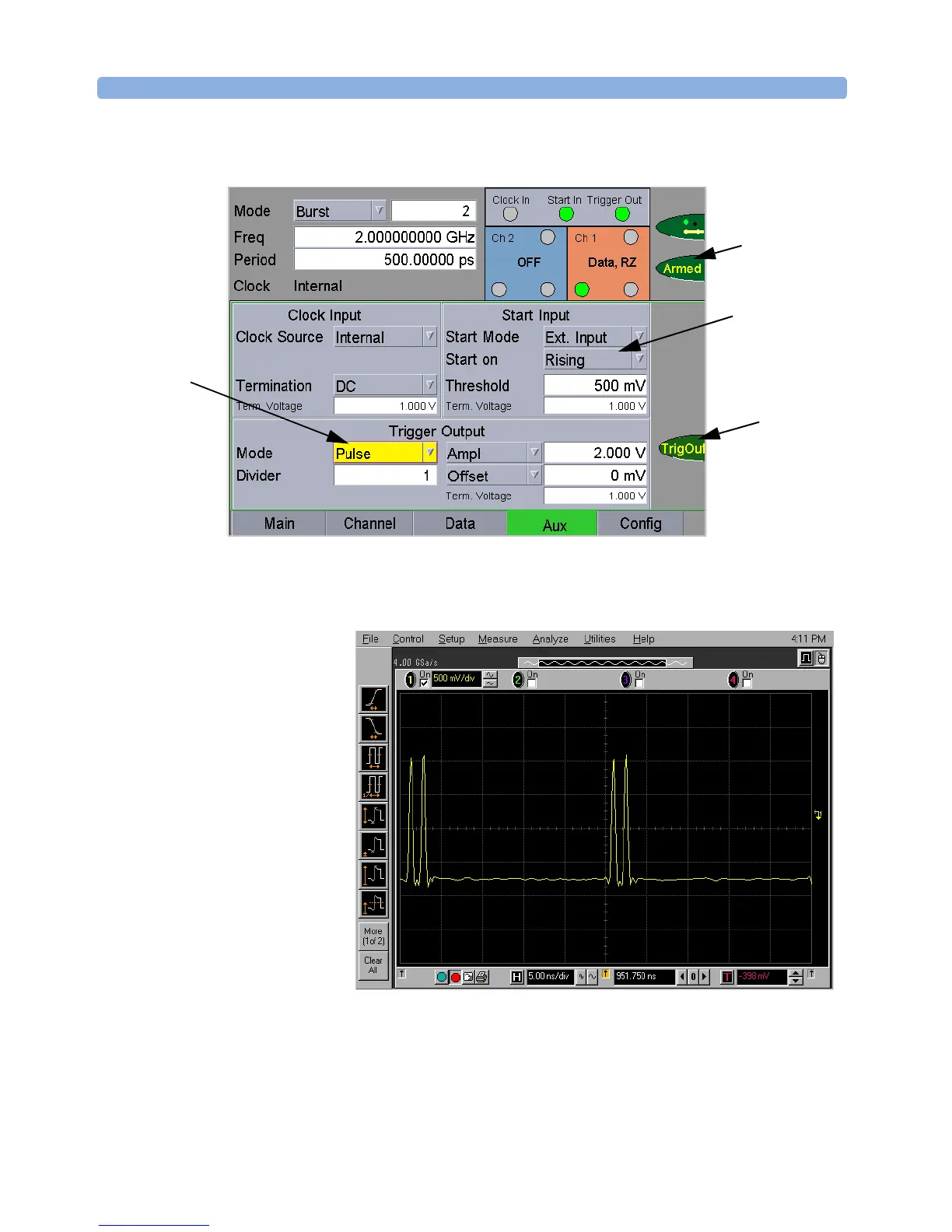

The Aux page now looks as follows:

Generated Signal Use the generator’s TRIGGER OUT to trigger a scope.

The signal as displayed on a standard oscilloscope is depicted below.

Trigger

Mode

TrigOut

softkey

function

Armed is

activated

Parameters to

start the output

by an external

signal
