Setting Up Generic and Advanced Signals Setting Up a Repetitive Burst Signal
54 Agilent 81133A/81134A Pulse Generator User’s Guide, August 2002

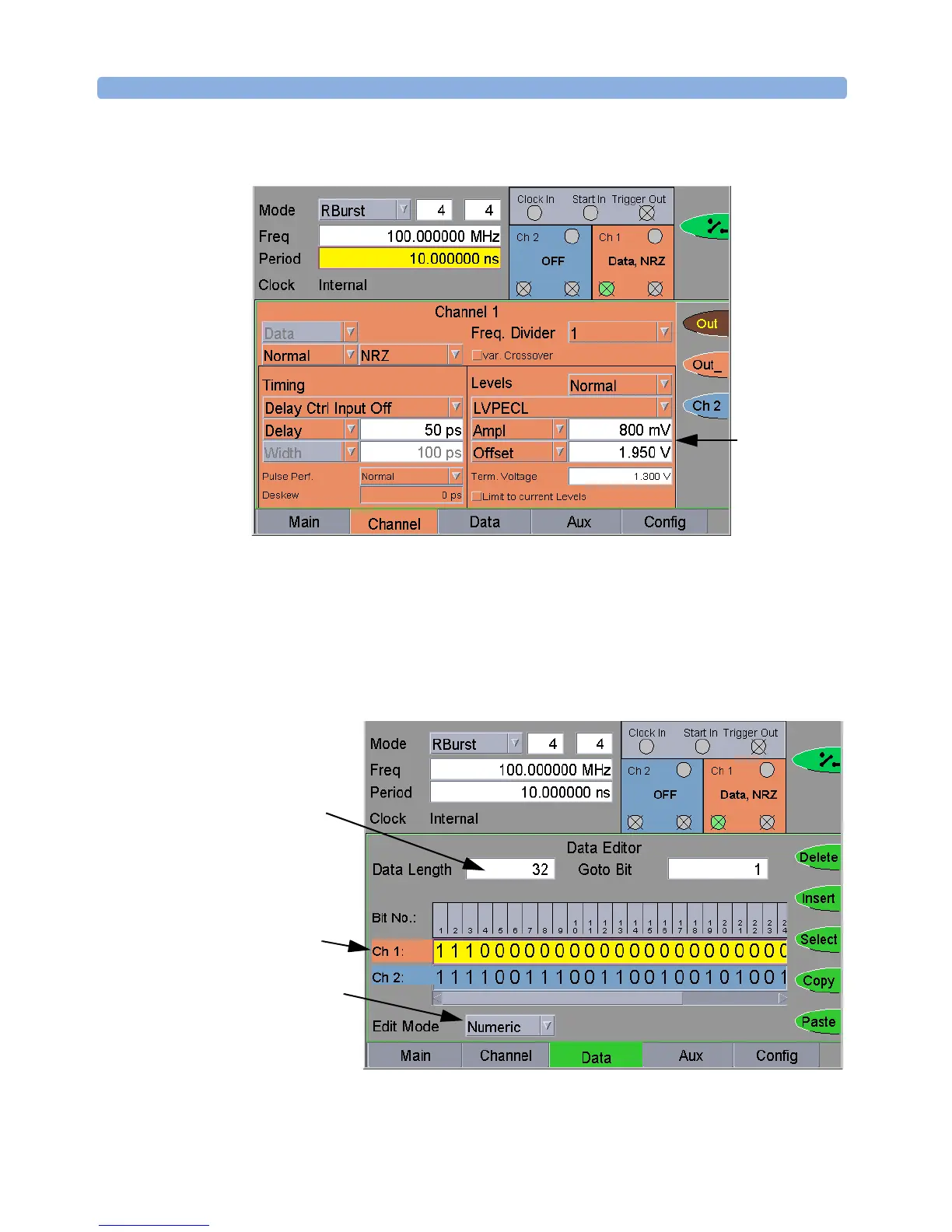

The Channel page now looks as follows:
Data Settings for the Pattern Signal To set the data pattern:
1 Switch to the Data page.
2 Enter a Data Length of 32 bits.
3 Enter the data pattern via the keypad for channel 1.
The Data page now looks as follows:
Levels
Graphic
Edit Mode
Data pattern
length
Data pattern for
channel 1
To Next Page
