Chapter 2 Quick Start
To Prepare the Power Supply for Use
24
Install the correct fuse and verify that the correct line voltage appears in the
window.

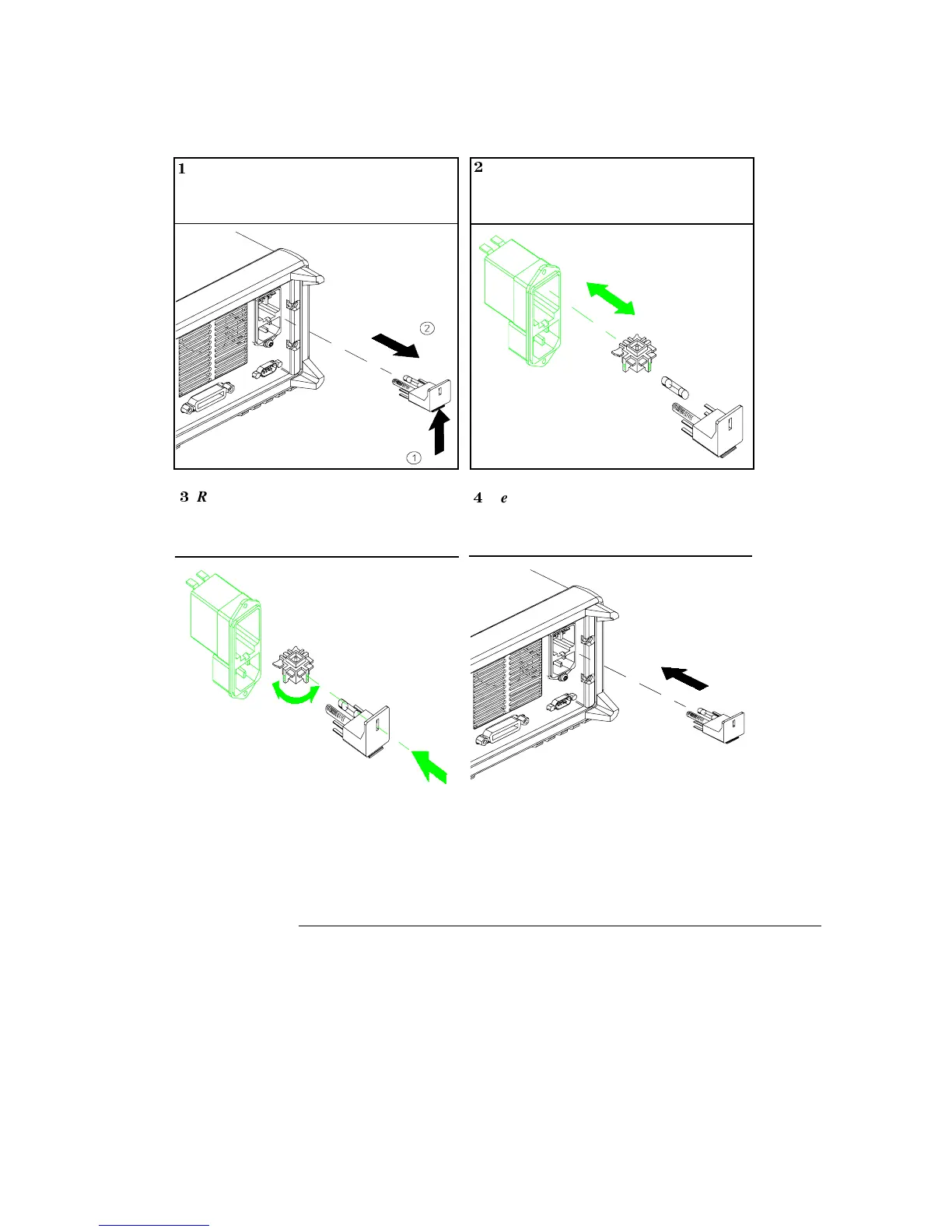

1
Remove the power cord. Remove the
fuse-holder assembly with a flat-blade
screwdriver from the rear panel.
2
Install the correct line fuse. Remove
the power-line voltage selector from the
power-line module.
3
Rotate the power-line voltage selector
until the correct voltage appears.
4
Replace the power-line voltage selector
and the fuse-holder assembly in the rear
panel.
100 or 115 Vac, 6.3 AT fuse
230 Vac, 3.15 AT fuse
100, 115, or 230 Vac
