Chapter 2 Quick Start
To Program Overcurrent Protection
38

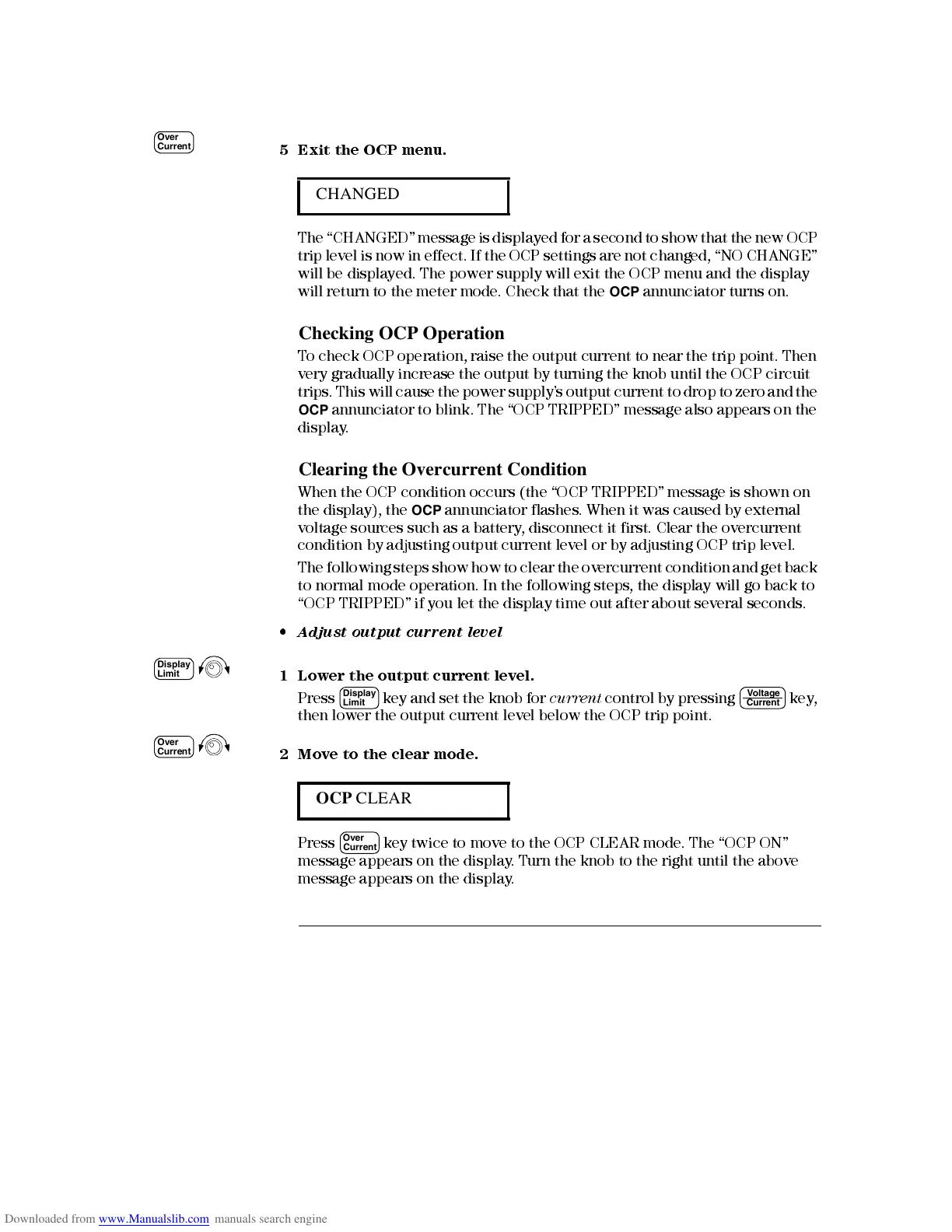

5 Exit the OCP menu.
The “CHANGED” message is displayed for a sec ond to show that the new OCP
trip level is now in effect. If the OCP settings are not chang ed, “NO CHANGE”
will be displayed. The power supply will exit the OCP menu and the display
will return to the meter mode. Check that the
OCP annunciator turns on.
Checking OCP Operation
To check OCP operation, raise the output current to near the trip point. Then
very gradually increase the output by turning the knob until the OCP circuit
trips. This will cause the power supply’ s output current to drop to zero and the
OCP annunciator to blink. The “OCP TRIPPED” message also appears on the
display.
Clearing the Overcurrent Condition
W hen the OCP condition occurs (the “OCP TRIPPED” message is shown on
the display), the
OCP annunciator flashes. When it was caused by external
voltage sources such as a battery, disconnect it fi rst. Clear the overcurrent
condition by adjusti ng output current level or b y adjustin g OCP trip level.
The following steps show how to cle ar the overcurrent condition and get back
to normal mode operation. In the following steps, the display will go back to
“OCP TRIPPED” if you let the display time out after about several seconds.
• Adjust output current level
1 Low er the output current level.
Press key and set the knob for current control by pressing key,
then lower the output current l evel below the OCP trip point.
2 Move to the clear mode.
Press key twice to move to the OCP CLEAR mode. The “OCP ON”
message appears on the display. Turn the knob to the right until the above
message appears on the display.
CHANGED
OCP CLEAR
Over
Current
Display
Limit
Display
Limit
Voltage
Current
Over
Current
Over
Current
