Agilent Technologies E3633A Service Guide

Chapter 2 Quick Start
To Use the Power Supply in Constant Current Mode
30

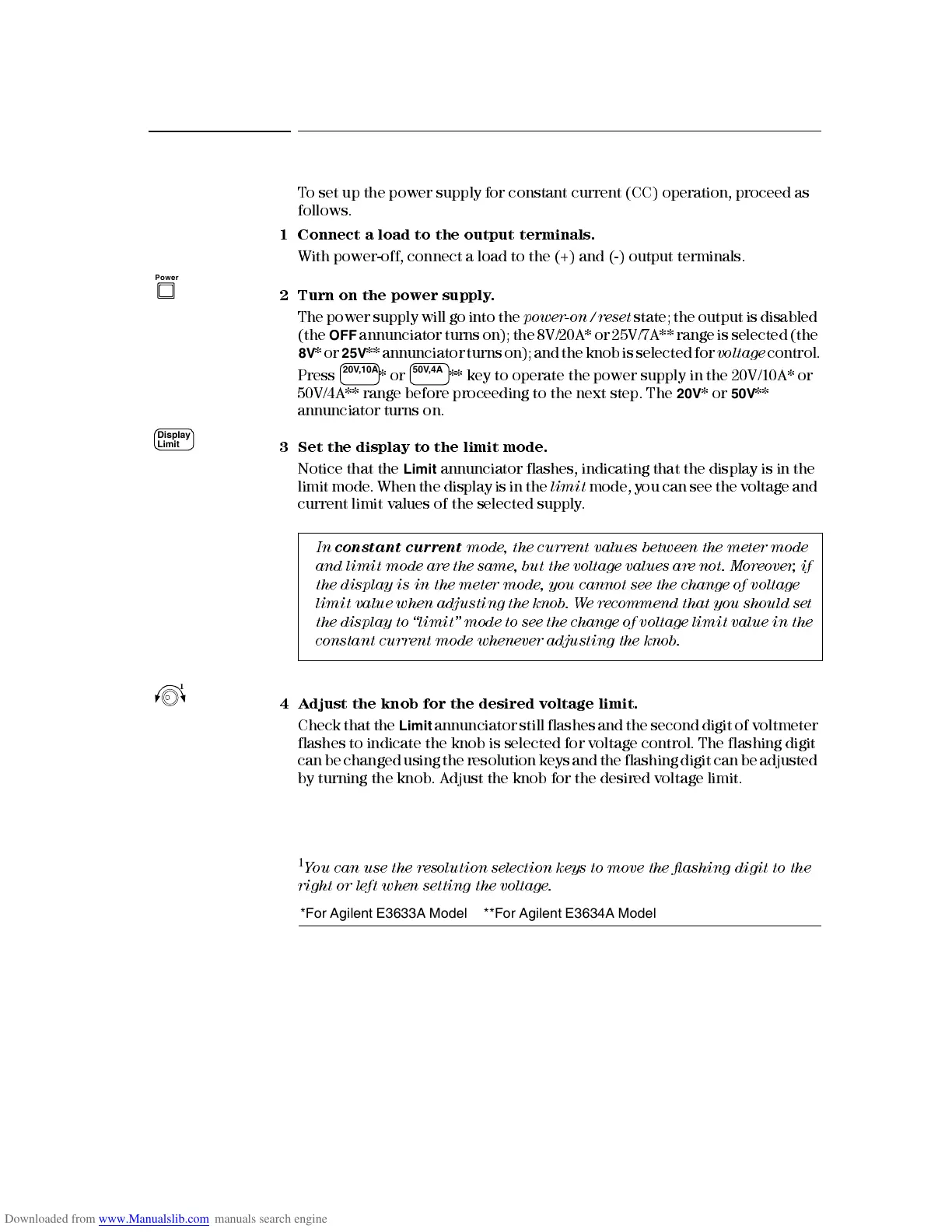

To Use the Power Supply in Constant Current Mode
To set up the power supply for constant current (CC) operation, proceed as
follows.
1 Connect a load to the output terminals.
With power-off, connect a load to the (+) and (-) output terminals.
2 Turn on the power supply.
The power supply will go into the power- on / reset state; the output is disabled
(the
OFF annunciator turns on); the 8V/20A* or 25 V/7 A** range is selected (the
8V * or 25V ** annunciator turns on); and the knob is selected for voltage control.
Press * or ** key to operate the power supply in the 20V/10A* or
50V/4A** range before proceeding to the next step. The 20V * or 50V **
annunciator turns on.
3 Set the display to the limit mode.
No t i c e that the Limit annunciator flashes, indicating that the display is in the
li mit mod e. Wh en t he d isp lay is in th e lim it mode, you can see the volt age and
current limit values of the selected supply.
4 Adjust the knob for the desired voltag e limit.
Check that the Limit annunciator still flashes and the second digit of voltmeter
flashes to indicate the knob is selected for voltage control. The flashing digit
can be changed using the resolution keys and the flashing digit can be adjusted
by turning the knob. Adjust the knob for the desired voltage limit.
1
You can use the resolution selection keys to move the flashing digit to the
right or left w hen settin g the voltage.
In constant current mode , the cur re nt valu es betw ee n the m ete r m ode
and limit mode are the same, but the voltage values are not. Moreover, if
the display is in the meter mode, you cannot see the change of voltage
limit v al ue wh en ad j u s t in g t h e k n o b . We reco mme nd t h a t you shou ld set
the display to “limit” mode to see the change of voltage limit value in the
constant current mode whenever adjusting the knob.
Power
20V,10A 50V,4A
Display
Limit
1
*For Agilent E3633A Model **For Agilent E3634A Model
