Chapter 3 Calibration Procedures
Constant Voltage (CV) Verifications
53
3

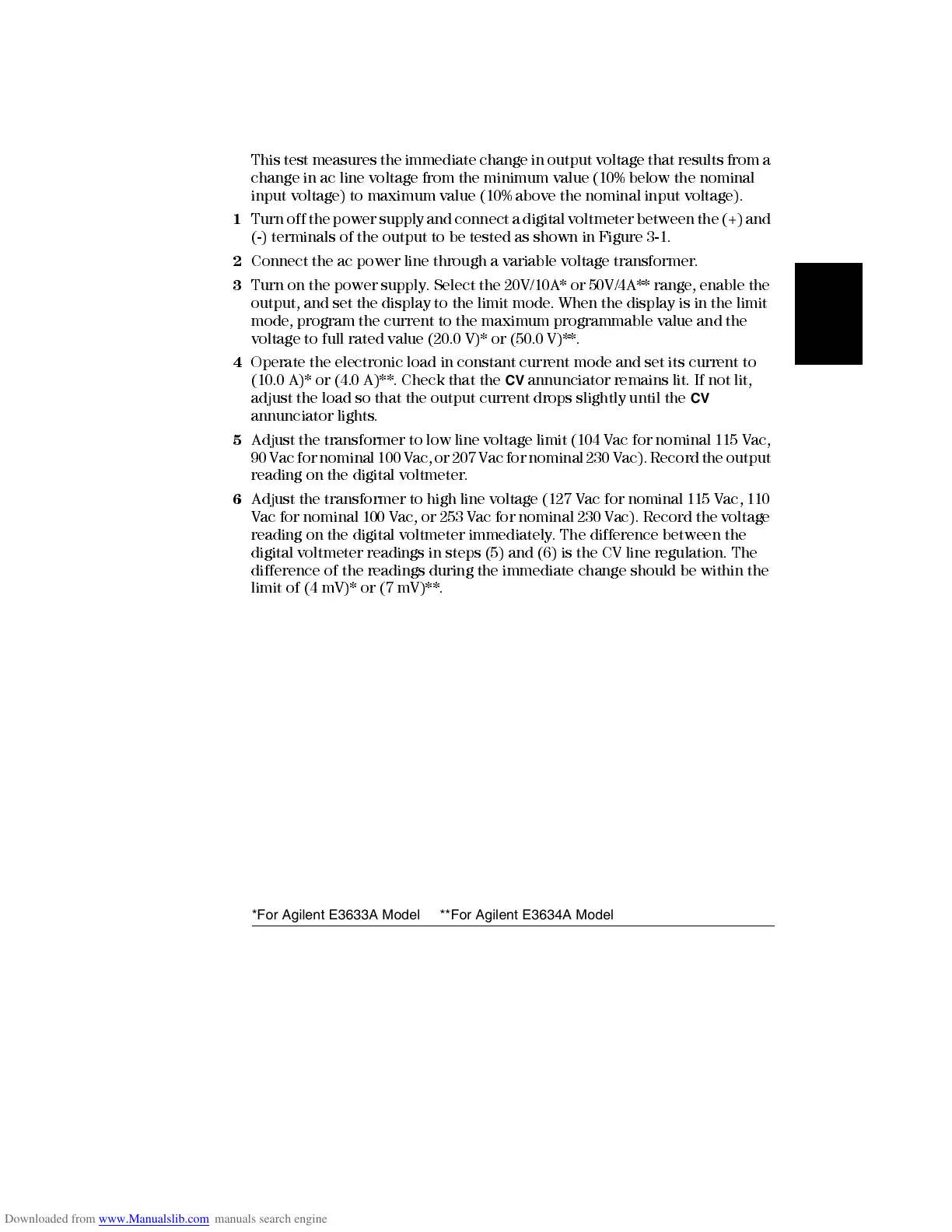

CV Source effect (Line Regulation)
This test measures the immediate cha nge in output voltage t hat results from a
change in ac line voltage from the minimum value (10% below the nominal
input voltage) to maximum value (10% above the nominal input voltage).
1
Turn off the power supply and connect a digital voltmeter between t he (+) and
(-) terminals of the output to be tested as shown in Figure 3-1.
2
Connect the ac power line through a variable voltage transformer.
3
Turn on the power supply. Select the 20V/10A* or 50V/4A** range, enable the
output, and set the display to the limit mode. When the display i s in the limit
mode, program the current to the maximum programm able value and the
voltage to full rated value (20.0 V )* or (50.0 V)**.
4
Operate the electronic load in constant current mode and set its current to
(10.0 A)* or (4.0 A)**. Check that the
CV
annunciator remains li t. If not l it,
adjust the load so that the output current drops slightly until the
CV
annunciator lights.
5
Adjust the transformer to low line voltage limit (104 Vac for nominal 115 Vac,
90 Vac for nominal 100 Vac, or 207 Vac for nominal 230 Vac). Record the output
reading on the digital vol tm eter.
6
Adjust the transformer to high line voltage (127 Vac for nominal 115 Vac, 110
Vac for nominal 100 Vac, or 253 Vac for nominal 230 Vac). Record the voltage
reading on the digital vol tm eter imm ediately. The difference betw een the
digital voltmeter readings in steps (5) and (6) is the CV line regulation. The
difference of the readings durin g the i mm edi ate ch ange should be withi n the
limit of (4 mV)* or (7 mV)**.
*For Agilent E3633A Model **For Agilent E3634A Model
