3-35
Replaceable Parts
Frequency, Hardware, and Personality Options

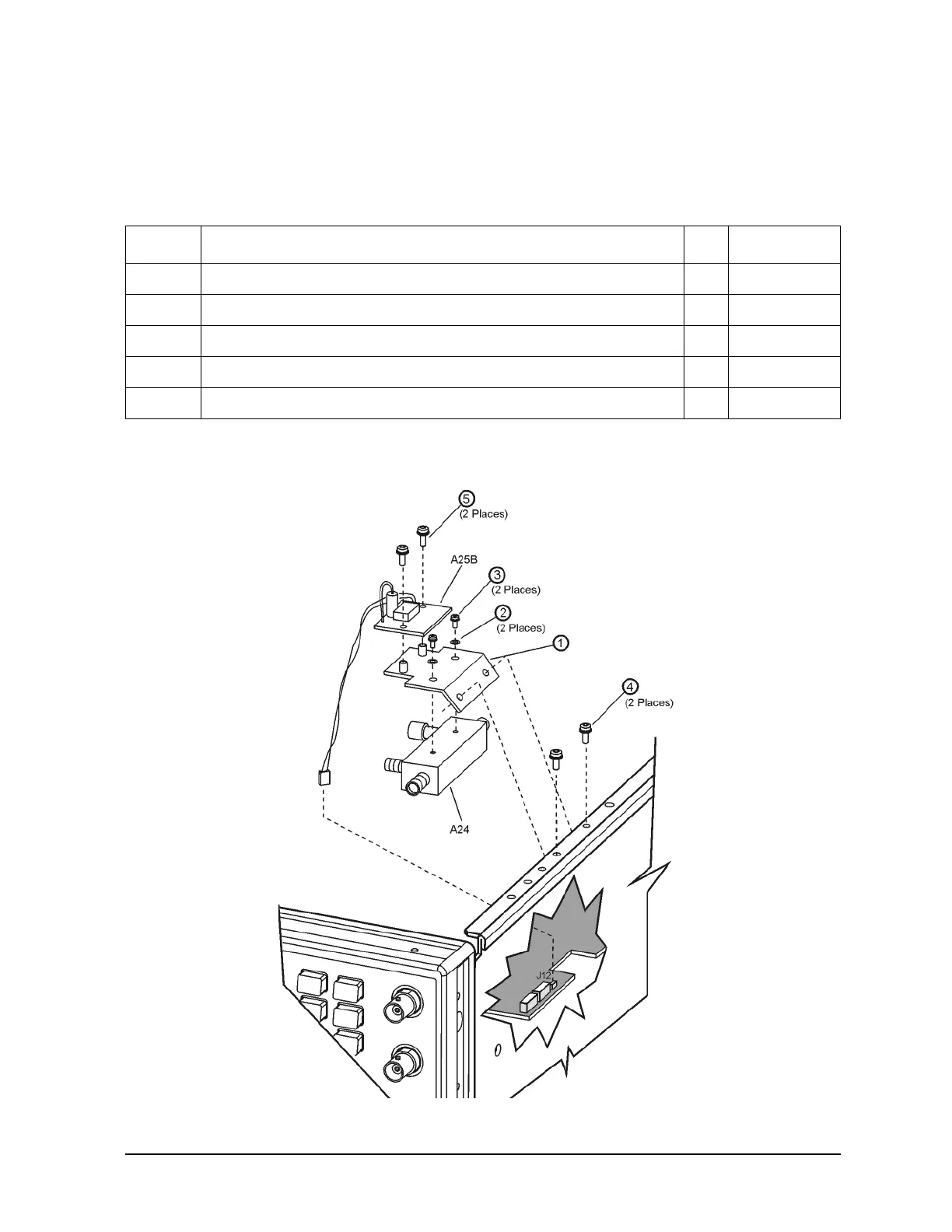

Disassembled A24 20 GHz Highband Coupler and A25B Highband
Detector Bias Board
Figure 3-18 Disassembled A24 20 GHz Highband Coupler and A25B Highband
Detector Bias Board
Table 3-7 Disassembled A24 20 GHz Highband Coupler and A25B Highband Detector
Bias Board
Item No. Description Qty Part Number
1 Coupler Bracket (Option 520) 1 E8251-00212
2 Washer Lock M2.0 2 2190-0654
3 Screw-Machine SM 256 .250 PN-PN 2 0520-0128
4 Screw-Machine M3.0 x 8 FL-TX 2 0515-1035
5 Screw-Machine M3.0 x 8 CW-PN-TX 2 0515-0372
