Replaceable Parts
Assemblies and Hardware Options
2.4 mm RF Output Connector (Option 540 Only)

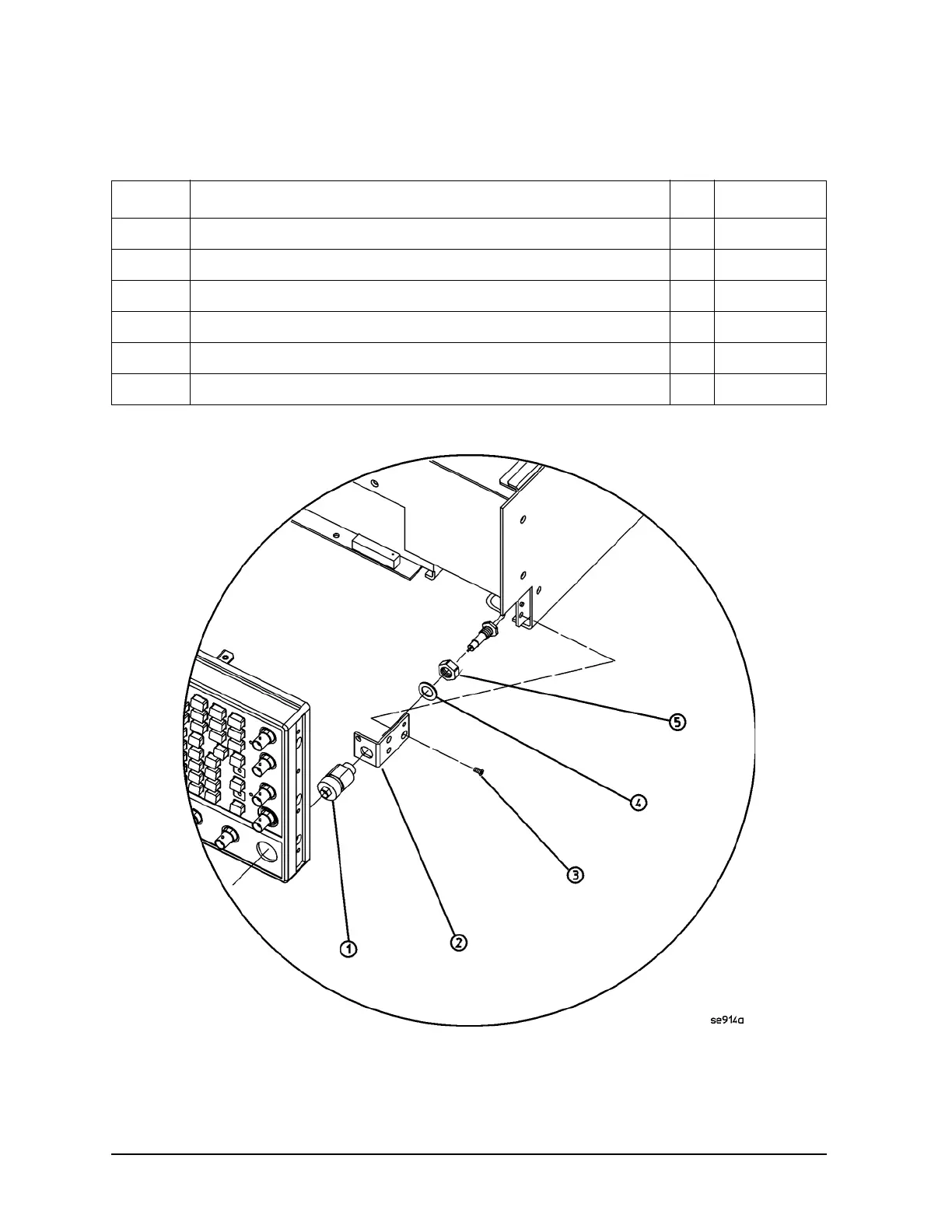

Figure 3-24 2.4 mm RF Output Connector (Option 540 Only)
Table 3-11 2.4 mm RF Output Connector (Option 540 Only)
Item No. Description Qty Part Number
1 Adapter-Male 2.4 mm 1 5063-1700
2 Adapter Bracket 1 E8251-00216
3 Screw-Machine M4.0 x 10 FL-TX (front frame to adapter bracket) 1 0515-1269
4 Washer lock .377ID 1 2190-0016
5 Nut-Hex 1 E8251-20067
W25 Semi-Rigid Cable (refer to Table 3-1 on page 3-19.)
