3-36

Replaceable Parts

Assemblies and Hardware Options

Disassembled A24 40GHz Highband Coupler and A25B Highband Detector

Bias Board

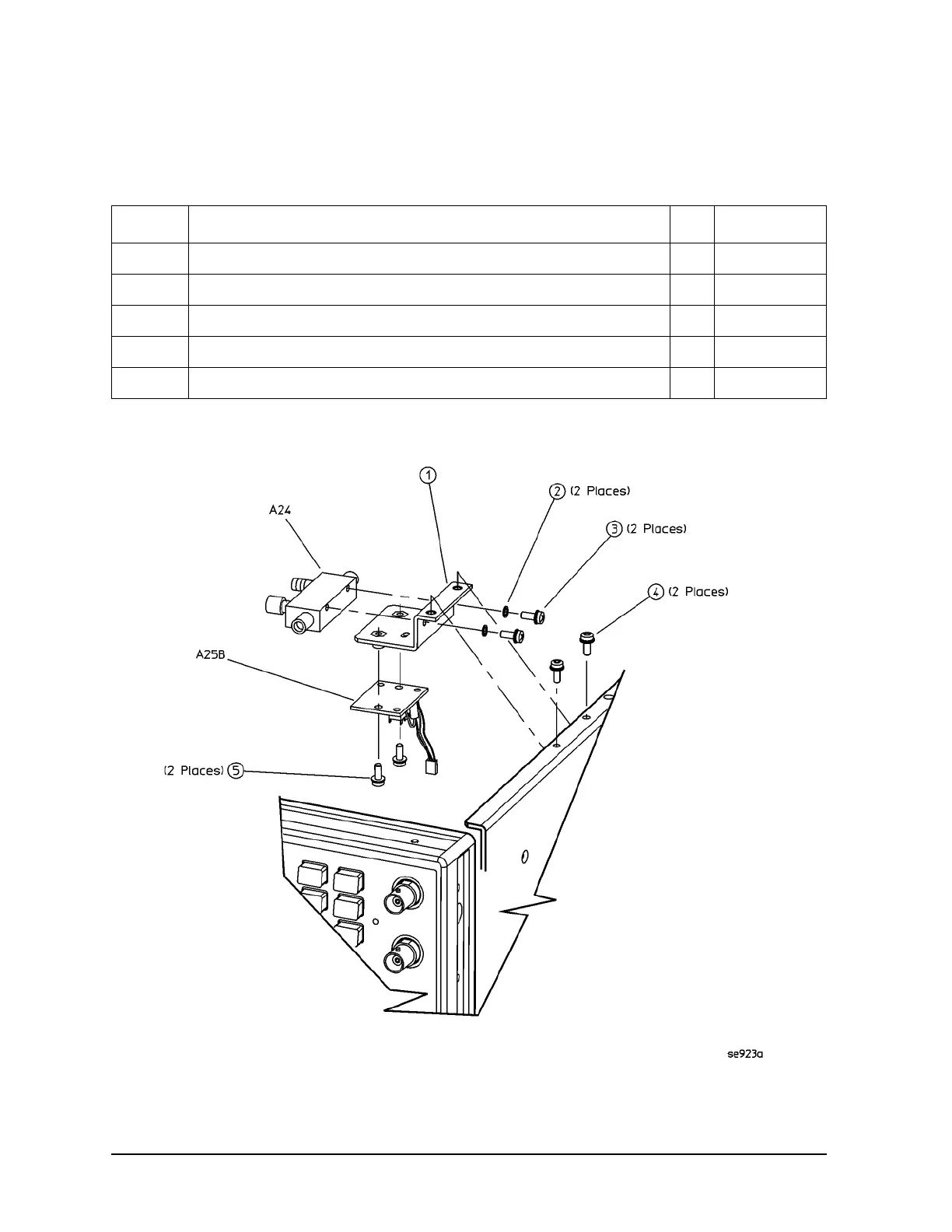

Figure 3-19 Disassembled A24 40GHz Highband Coupler and A25B Highband

Detector Bias Board

Table 3-8 Disassembled A24 Highband Coupler and A25 Highband Detector

Item No. Description Qty Part Number

1 Coupler Bracket (Option 540) 1 E8251-00039

2 Washer Lock M2.5 2 2190-0583

3 Screw-Machine M4.0 x .312 PN-PN 2 2200-0141

4 Screw-Machine M3.0 x 8 FL-TX 2 0515-1035

5 Screw-Machine M3.0 x 8 CW-PN-TX 2 0515-0372
