Agilent Technologies E8364B User Manual

Service Guide E8364-90026 7-75
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
E8362B, E8363B, E8364B Removing and Replacing the Midweb and the B1 Fan
Removing the Midweb
Refer to Figure 7-35.
1. Disconnect the power cable (item
①) for the three fans from the A14 system
motherboard.
2. With a T-10 TORX driver, remove the seven midweb mounting screws (item
②). Lift out
the midweb.

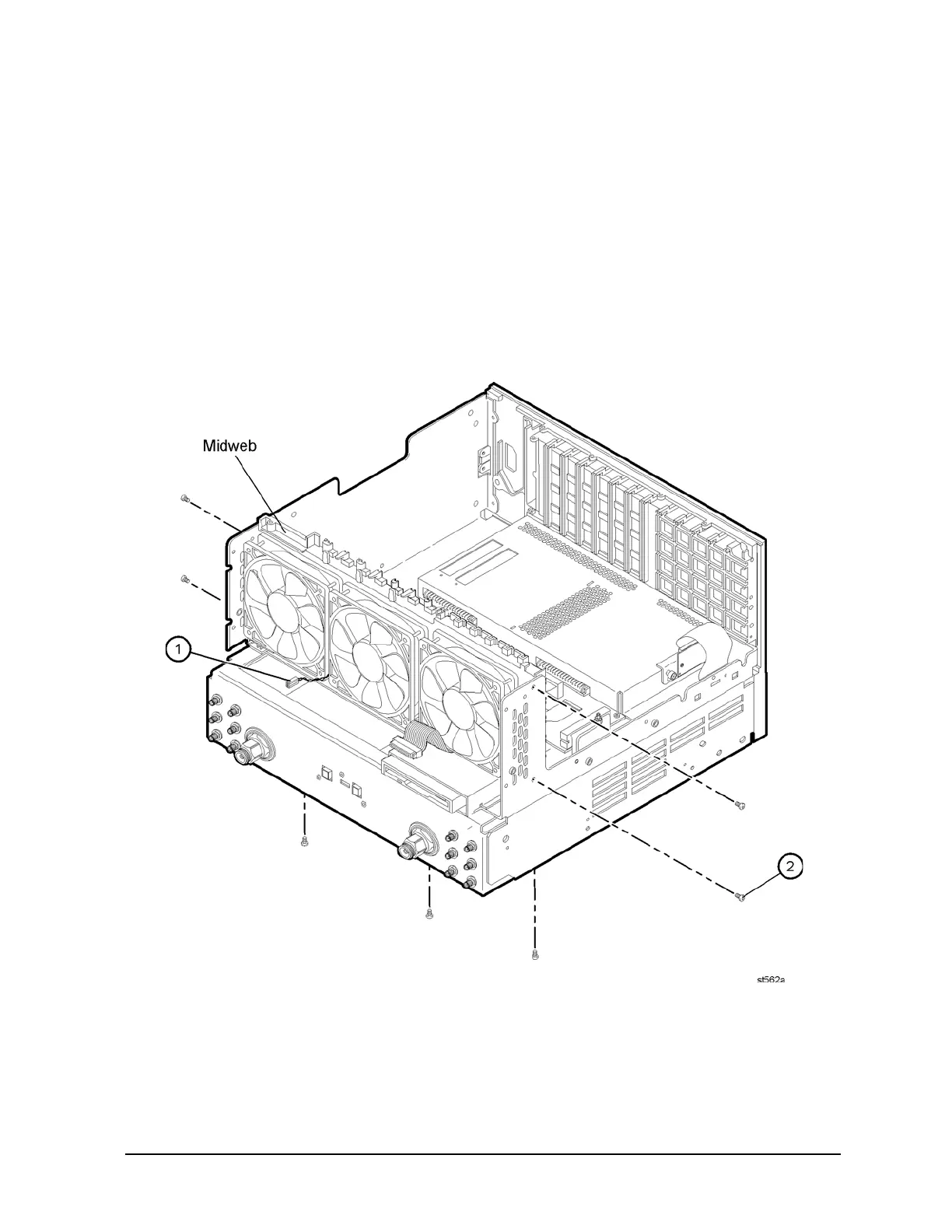

Figure 7-35 Midweb Removal
