Agilent Technologies ESA-E Series User Manual

Chapter 2 2-13
Getting Started
Display Annotation
Display Annotation
Here is an example of the annotation that may appear on an analyzer
display. The display annotation is referenced by numbers which are
listed in the following table. The Function Key column indicates which
key activates the function related to the annotation. Refer to
Chapter 6 , “Front-Panel Key Reference” for more information on a
specific function key.

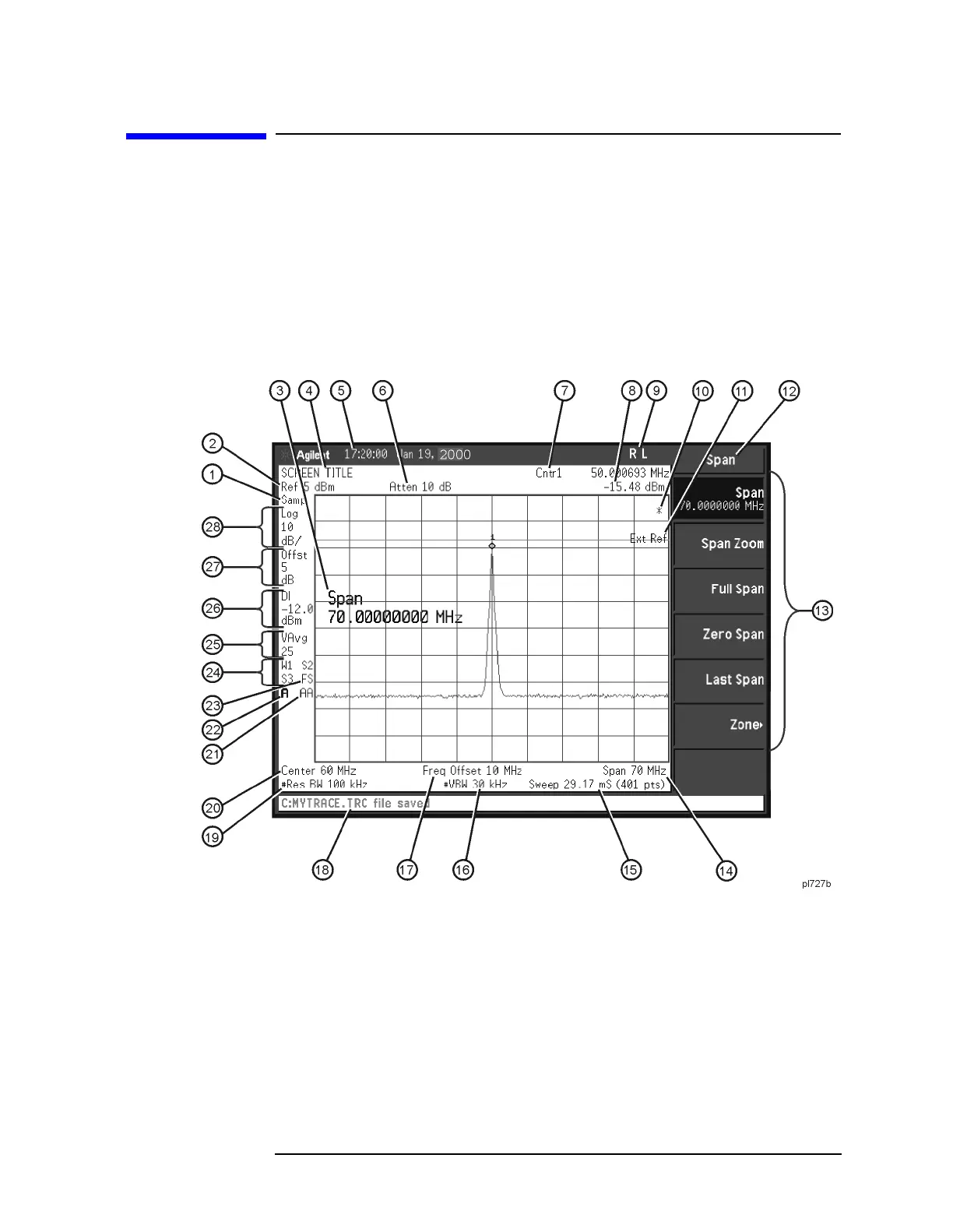

Figure 2-3 Screen Annotation
