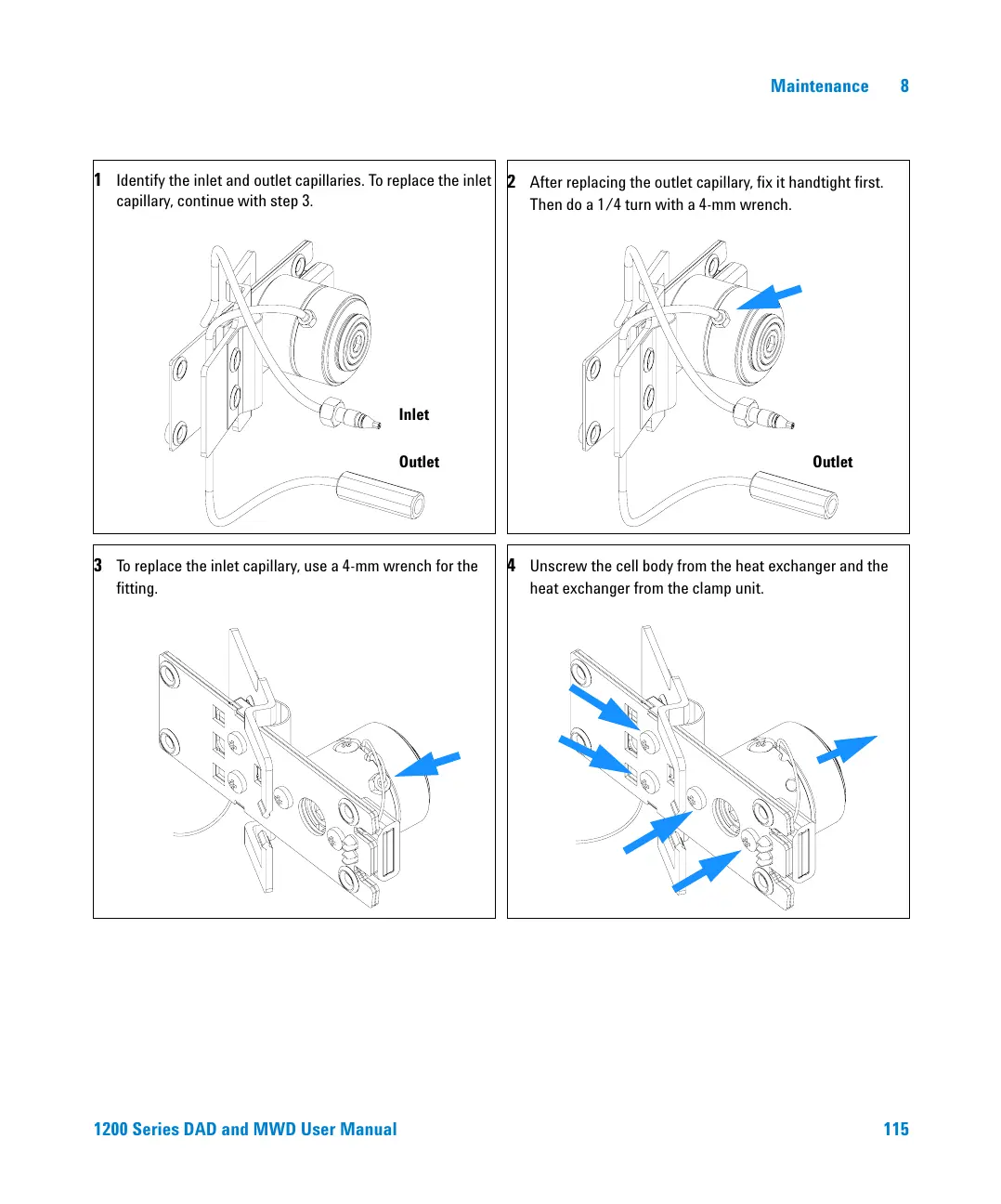

1200 Series DAD and MWD User Manual 115
Maintenance 8
1 Identify the inlet and outlet capillaries. To replace the inlet
capillary, continue with step 3.
2 After replacing the outlet capillary, fix it handtight first.
Then do a 1/4 turn with a 4-mm wrench.
3 To replace the inlet capillary, use a 4-mm wrench for the
fitting.
4 Unscrew the cell body from the heat exchanger and the
heat exchanger from the clamp unit.
Outlet
Inlet
Outlet
