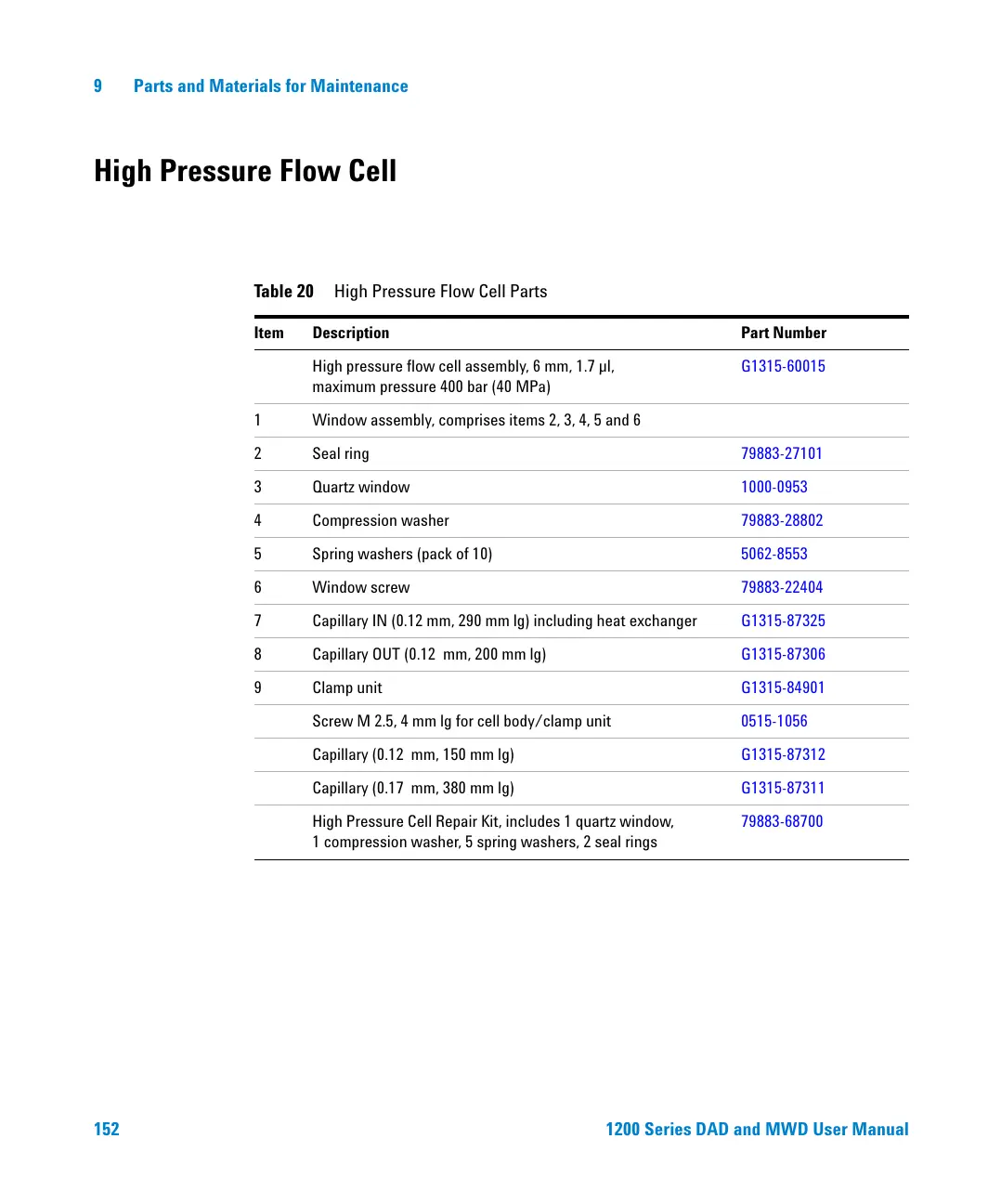

152 1200 Series DAD and MWD User Manual
9 Parts and Materials for Maintenance
High Pressure Flow Cell
Tab le 20 High Pressure Flow Cell Parts
Item Description Part Number
High pressure flow cell assembly, 6 mm, 1.7 µl,
maximum pressure 400 bar (40 MPa)
G1315-60015
1 Window assembly, comprises items 2, 3, 4, 5 and 6
2Seal ring 79883-27101
3 Quartz window 1000-0953
4 Compression washer 79883-28802
5 Spring washers (pack of 10) 5062-8553
6Window screw 79883-22404
7 Capillary IN (0.12 mm, 290 mm lg) including heat exchanger G1315-87325
8 Capillary OUT (0.12 mm, 200 mm lg) G1315-87306
9 Clamp unit G1315-84901
Screw M 2.5, 4 mm lg for cell body/clamp unit 0515-1056
Capillary (0.12 mm, 150 mm lg) G1315-87312
Capillary (0.17 mm, 380 mm lg) G1315-87311
High Pressure Cell Repair Kit, includes 1 quartz window,
1 compression washer, 5 spring washers, 2 seal rings
79883-68700
To Next Page
