1200 Series DAD and MWD User Manual 59
Using the Detector 4
Special Settings of the Detector
In this chapter special settings of the G1315B DAD and G1365B MWD are
described (based on the Agilent ChemStation B.02.01).
Control Settings

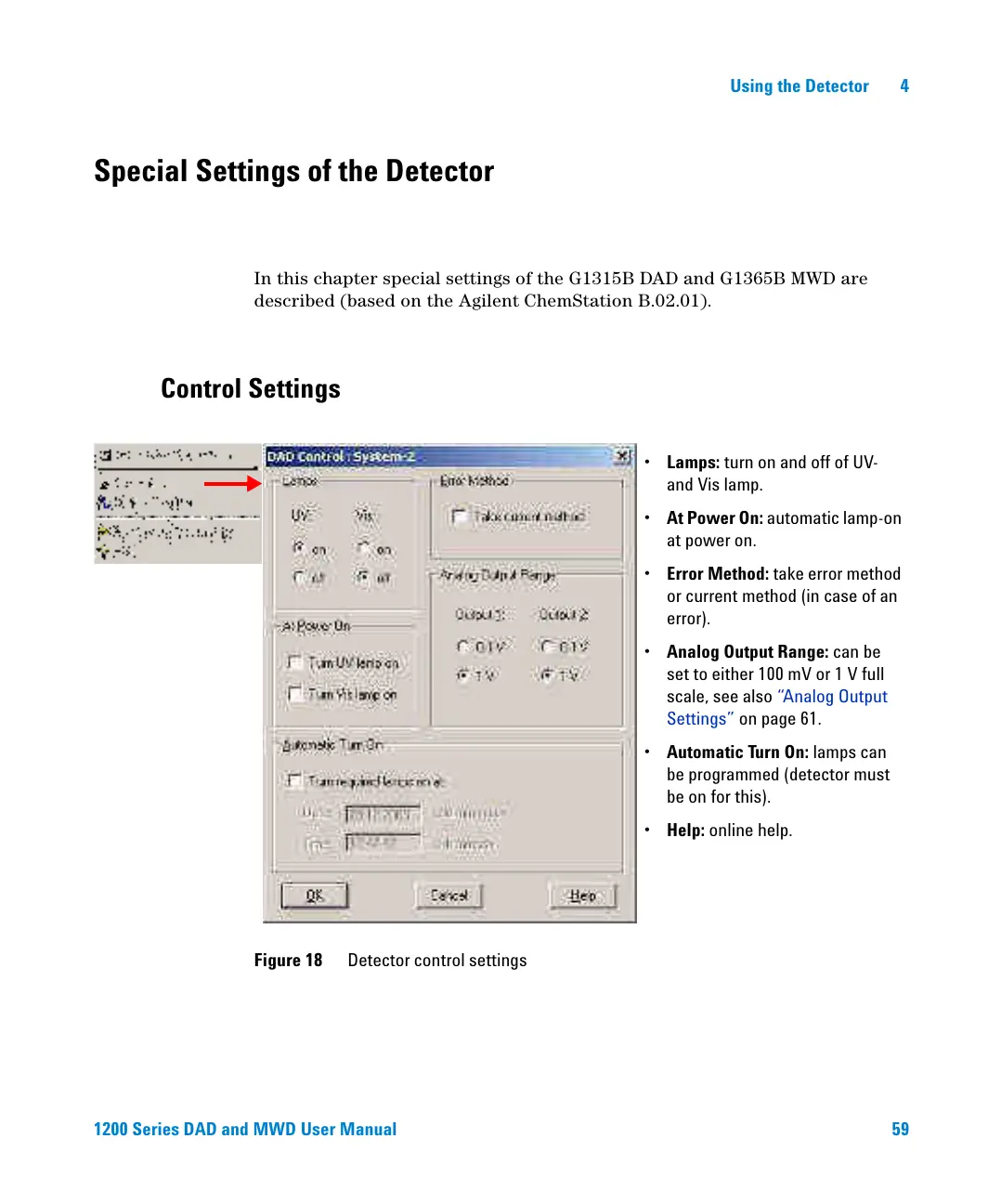

Figure 18 Detector control settings
•Lamps: turn on and off of UV-
and Vis lamp.
•At Power On: automatic lamp-on
at power on.
• Error Method: take error method
or current method (in case of an
error).
• Analog Output Range: can be
set to either 100 mV or 1 V full
scale, see also
“Analog Output
Settings” on page 61.
• Automatic Turn On: lamps can
be programmed (detector must
be on for this).
•Help: online help.
