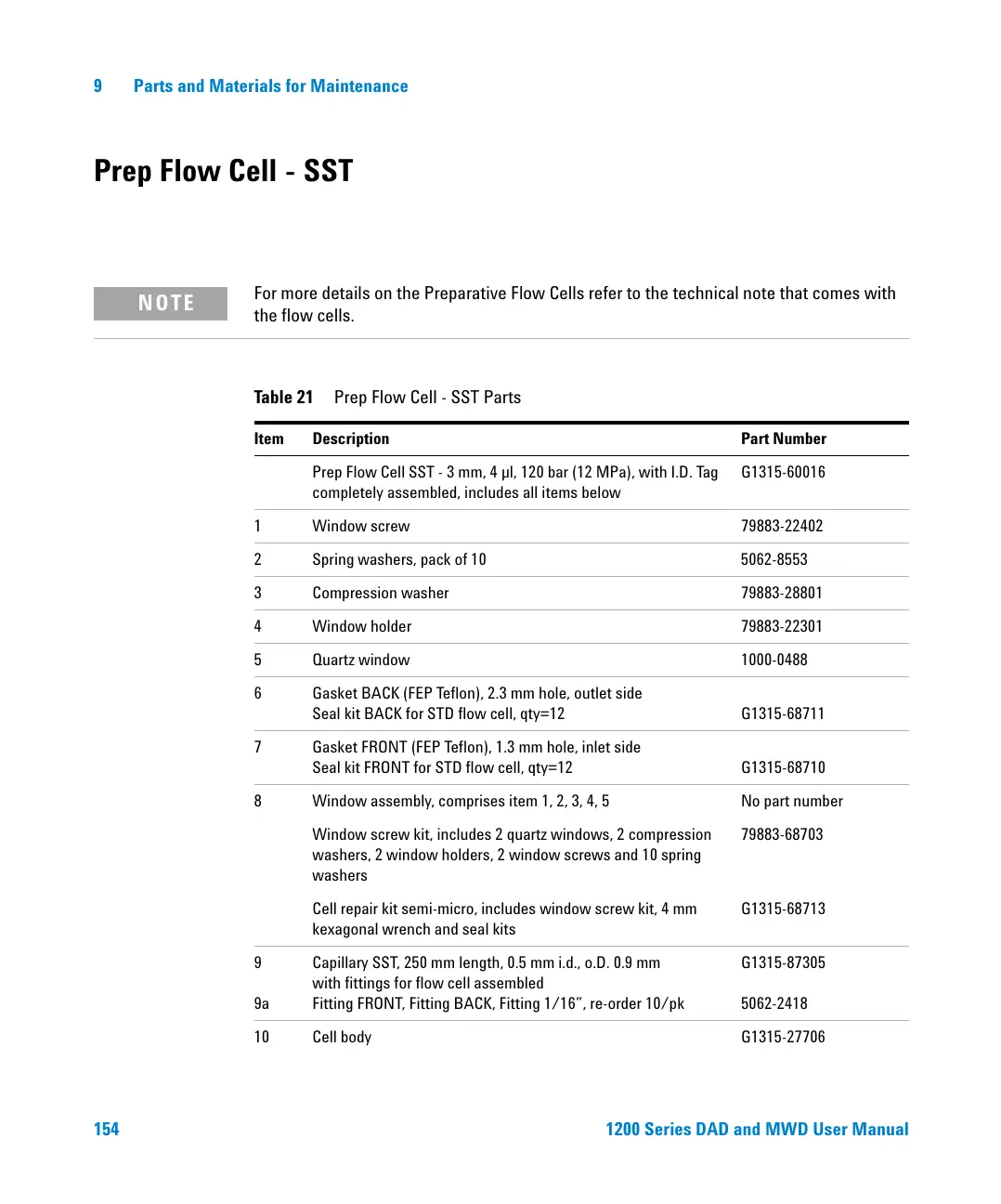

154 1200 Series DAD and MWD User Manual
9 Parts and Materials for Maintenance
Prep Flow Cell - SST
NOTE
For more details on the Preparative Flow Cells refer to the technical note that comes with
the flow cells.
Tab le 21 Prep Flow Cell - SST Parts
Item Description Part Number
Prep Flow Cell SST - 3 mm, 4 µl, 120bar (12MPa), with I.D. Tag
completely assembled, includes all items below
G1315-60016
1 Window screw 79883-22402
2 Spring washers, pack of 10 5062-8553
3 Compression washer 79883-28801
4 Window holder 79883-22301
5 Quartz window 1000-0488
6 Gasket BACK (FEP Teflon), 2.3 mm hole, outlet side
Seal kit BACK for STD flow cell, qty=12 G1315-68711
7 Gasket FRONT (FEP Teflon), 1.3 mm hole, inlet side
Seal kit FRONT for STD flow cell, qty=12 G1315-68710
8 Window assembly, comprises item 1, 2, 3, 4, 5 No part number
Window screw kit, includes 2 quartz windows, 2 compression
washers, 2 window holders, 2 window screws and 10 spring
washers
79883-68703
Cell repair kit semi-micro, includes window screw kit, 4 mm
kexagonal wrench and seal kits
G1315-68713
9
9a
Capillary SST, 250 mm length, 0.5 mm i.d., o.D. 0.9 mm
with fittings for flow cell assembled
Fitting FRONT, Fitting BACK, Fitting 1/16”, re-order 10/pk
G1315-87305
5062-2418
10 Cell body G1315-27706
To Next Page
