146 1200 Series DAD and MWD User Manual
9 Parts and Materials for Maintenance

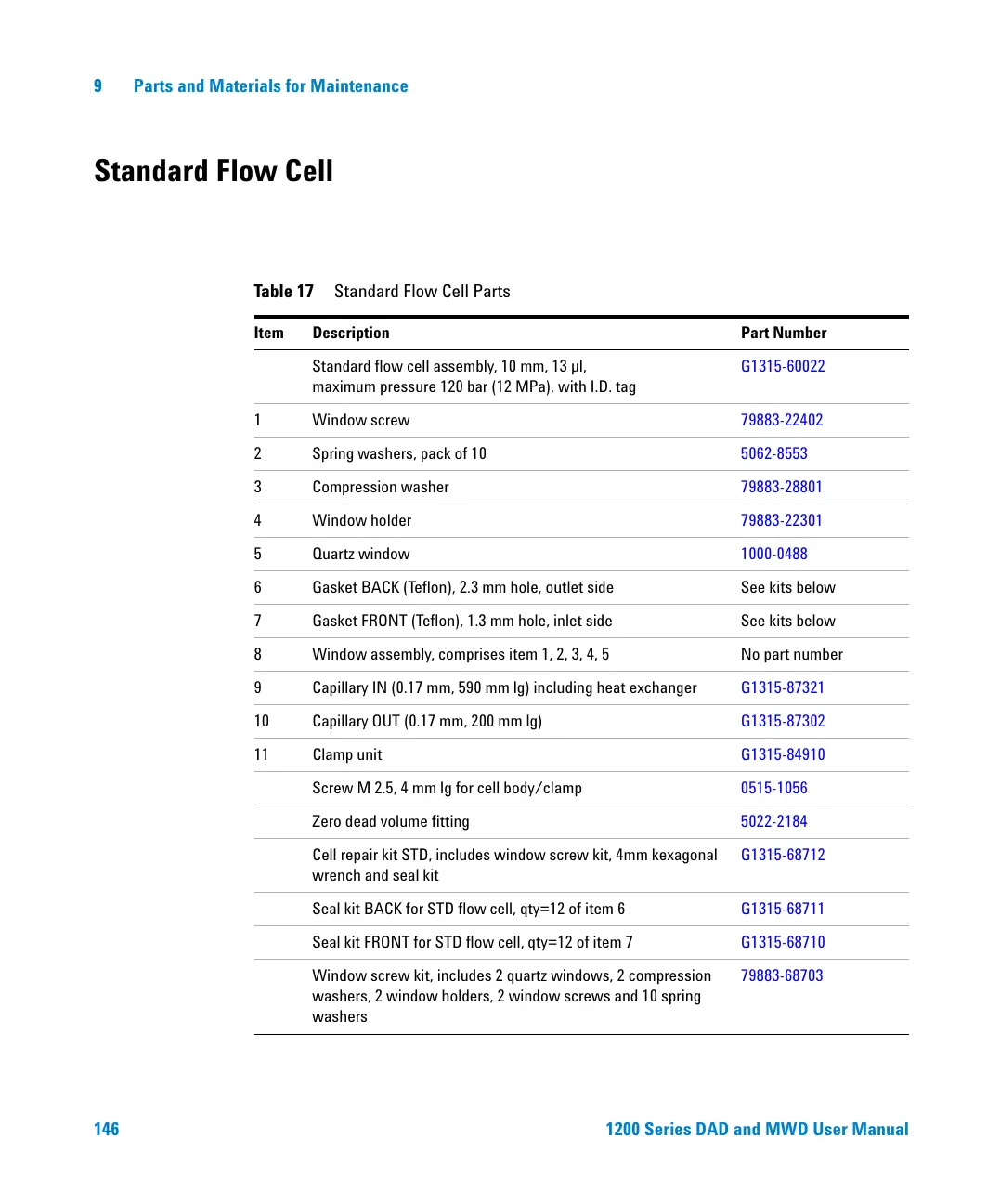

Standard Flow Cell
Tab le 17 Standard Flow Cell Parts
Item Description Part Number
Standard flow cell assembly, 10 mm, 13 µl,
maximum pressure 120 bar (12 MPa), with I.D. tag
G1315-60022
1Window screw 79883-22402
2 Spring washers, pack of 10 5062-8553
3 Compression washer 79883-28801
4 Window holder 79883-22301
5 Quartz window 1000-0488
6 Gasket BACK (Teflon), 2.3 mm hole, outlet side See kits below
7 Gasket FRONT (Teflon), 1.3 mm hole, inlet side See kits below
8 Window assembly, comprises item 1, 2, 3, 4, 5 No part number
9 Capillary IN (0.17 mm, 590 mm lg) including heat exchanger G1315-87321
10 Capillary OUT (0.17 mm, 200 mm lg) G1315-87302
11 Clamp unit G1315-84910
Screw M 2.5, 4 mm lg for cell body/clamp 0515-1056
Zero dead volume fitting 5022-2184
Cell repair kit STD, includes window screw kit, 4mm kexagonal
wrench and seal kit
G1315-68712
Seal kit BACK for STD flow cell, qty=12 of item 6 G1315-68711
Seal kit FRONT for STD flow cell, qty=12 of item 7 G1315-68710
Window screw kit, includes 2 quartz windows, 2 compression
washers, 2 window holders, 2 window screws and 10 spring
washers
79883-68703
