Agilent Technologies G1315B User Manual

1200 Series DAD and MWD User Manual 147
Parts and Materials for Maintenance 9

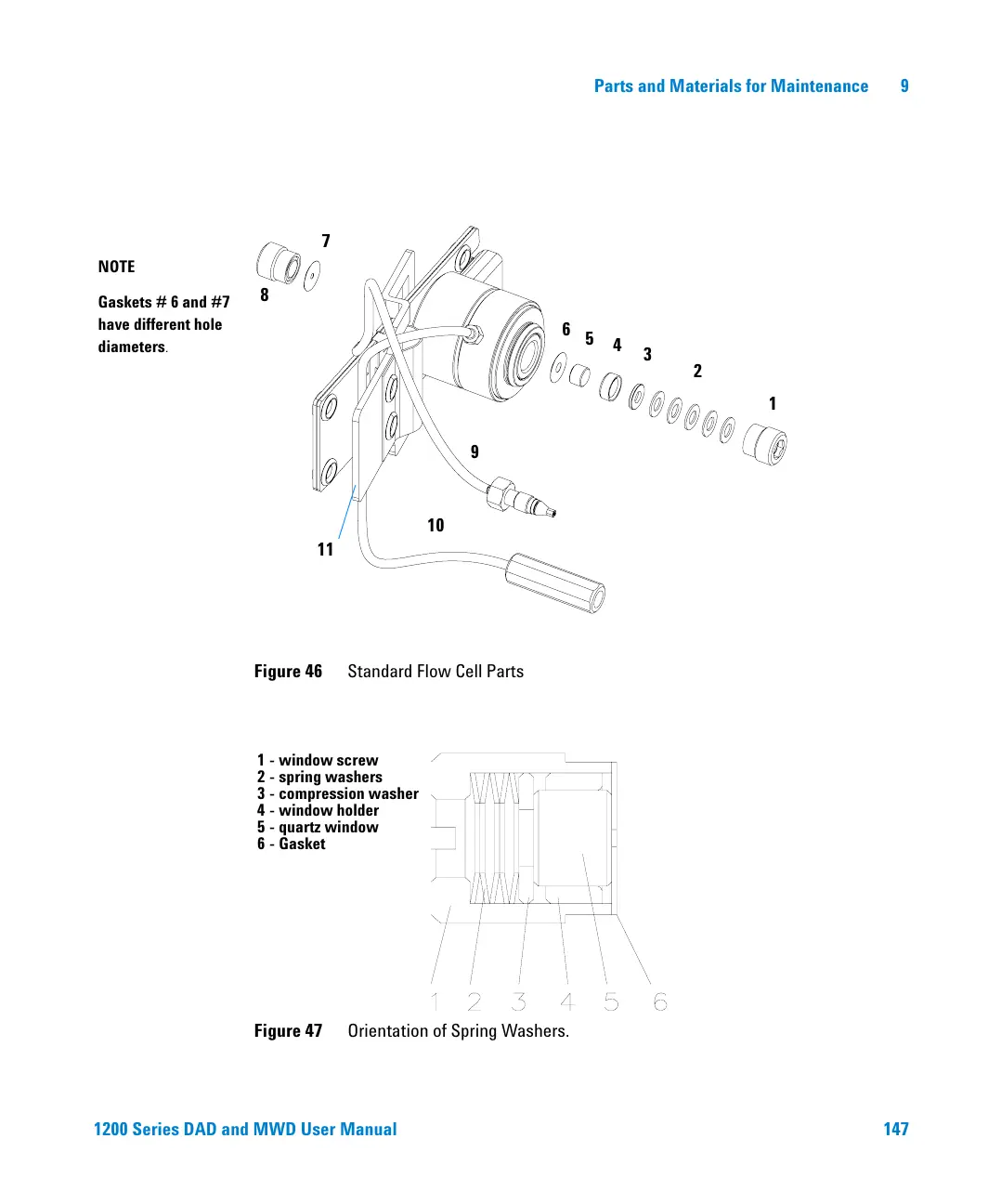

Figure 46 Standard Flow Cell Parts
Figure 47 Orientation of Spring Washers.
NOTE
Gaskets # 6 and #7
have different hole
diameters.
1
2
3
4
5
6
7
8
11
9
10
1 - window screw
2 - spring washers
3 - compression washer
4 - window holder
5 - quartz window
6 - Gasket
