1200 Series DAD and MWD User Manual 151
Parts and Materials for Maintenance 9

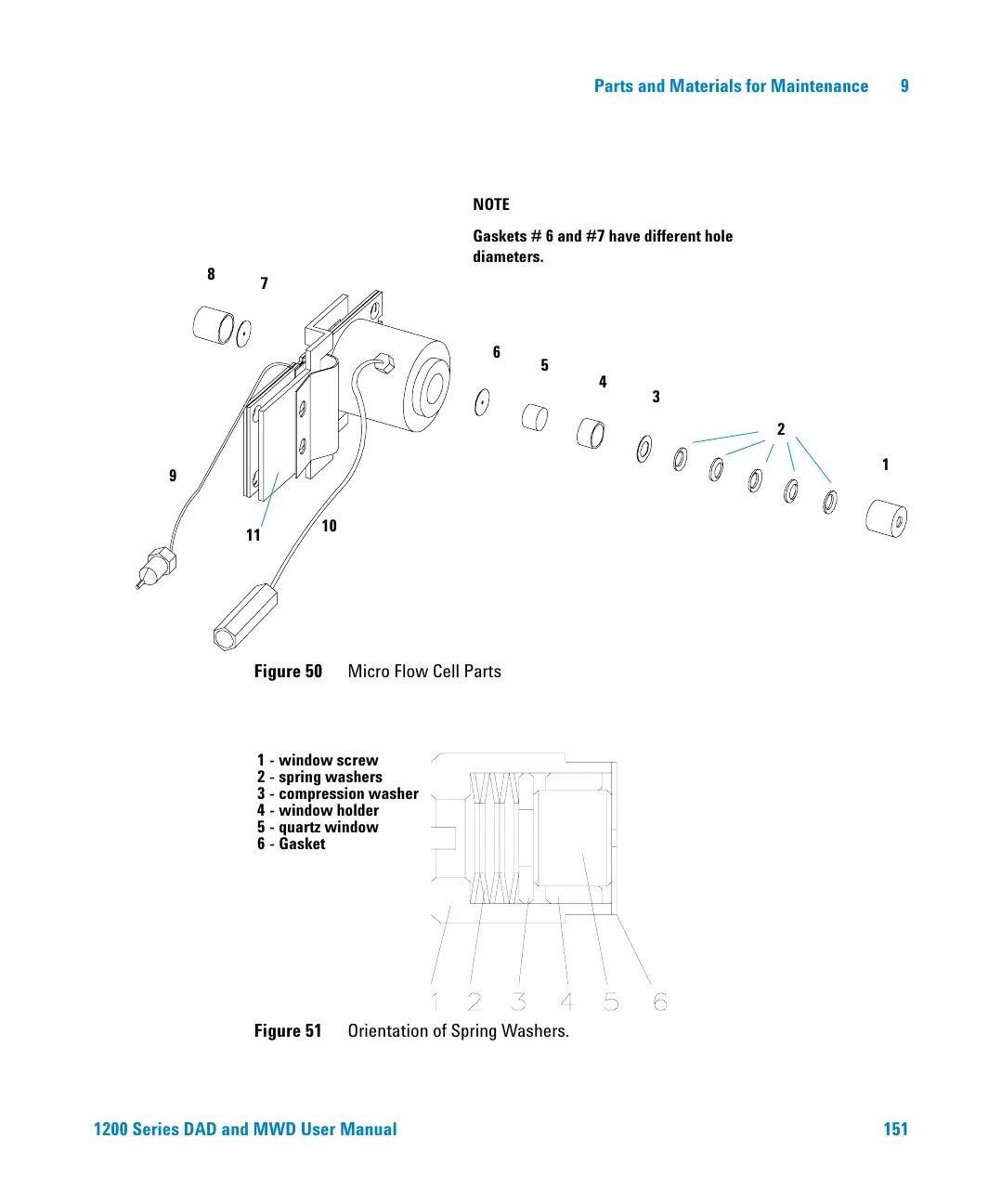

Figure 50 Micro Flow Cell Parts
Figure 51 Orientation of Spring Washers.
1
7
6
5
4
3
2
9
10
8
11
NOTE
Gaskets # 6 and #7 have different hole
diameters.
1 - window screw
2 - spring washers
3 - compression washer
4 - window holder
5 - quartz window
6 - Gasket
