Parts and Materials for Maintenance 9

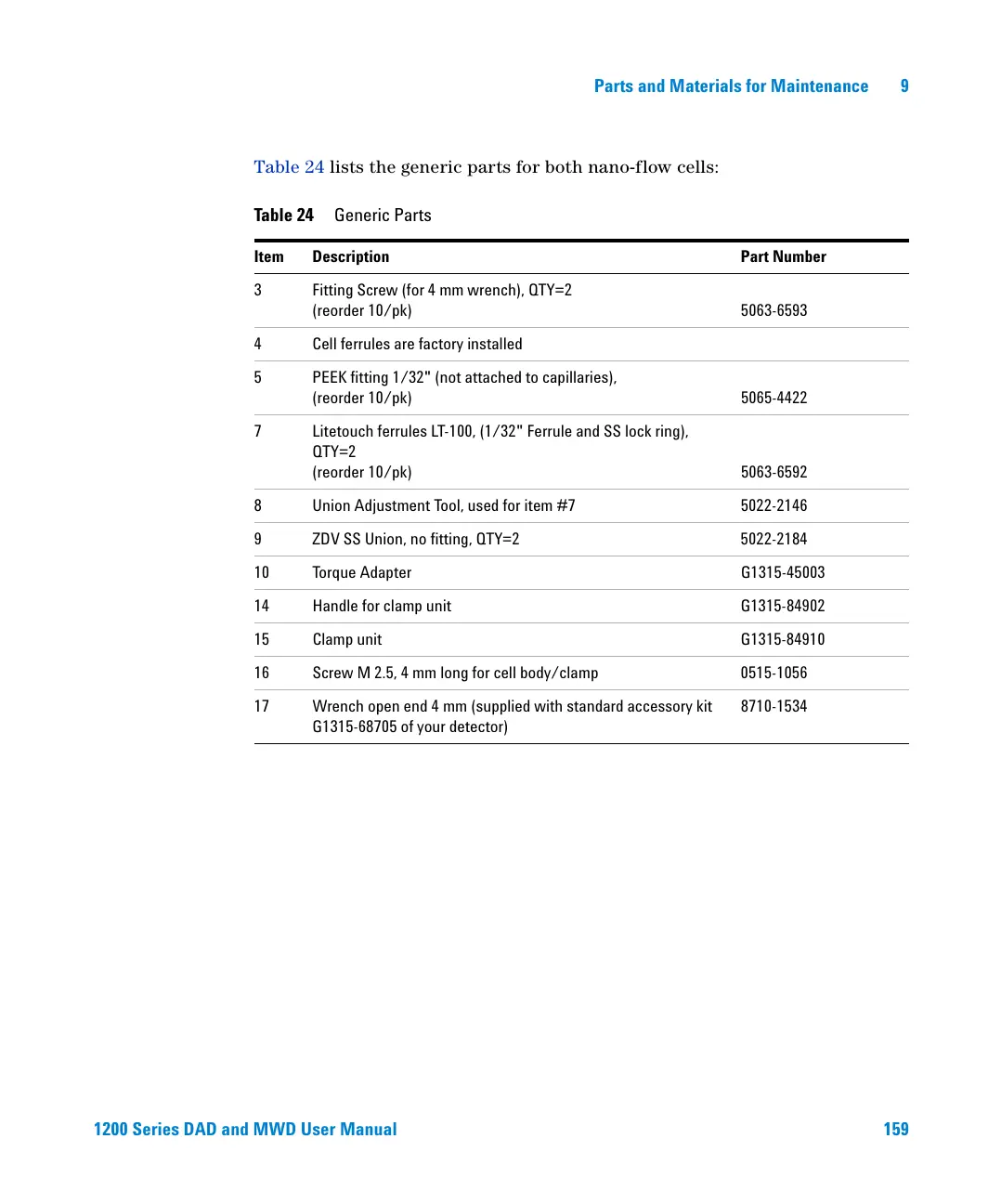

Table 24 lists the generic parts for both nano-flow cells:
Tab le 24 Generic Parts
Item Description Part Number
3 Fitting Screw (for 4 mm wrench), QTY=2
(reorder 10/pk) 5063-6593
4 Cell ferrules are factory installed
5 PEEK fitting 1/32" (not attached to capillaries),
(reorder 10/pk) 5065-4422
7 Litetouch ferrules LT-100, (1/32" Ferrule and SS lock ring),
QTY=2
(reorder 10/pk) 5063-6592
8 Union Adjustment Tool, used for item #7 5022-2146
9 ZDV SS Union, no fitting, QTY=2 5022-2184
10 Torque Adapter G1315-45003
14 Handle for clamp unit G1315-84902
15 Clamp unit G1315-84910
16 Screw M 2.5, 4 mm long for cell body/clamp 0515-1056
17 Wrench open end 4 mm (supplied with standard accessory kit
G1315-68705 of your detector)
8710-1534
