40 1200 Series DAD and MWD User Manual
3 Installing the Detector

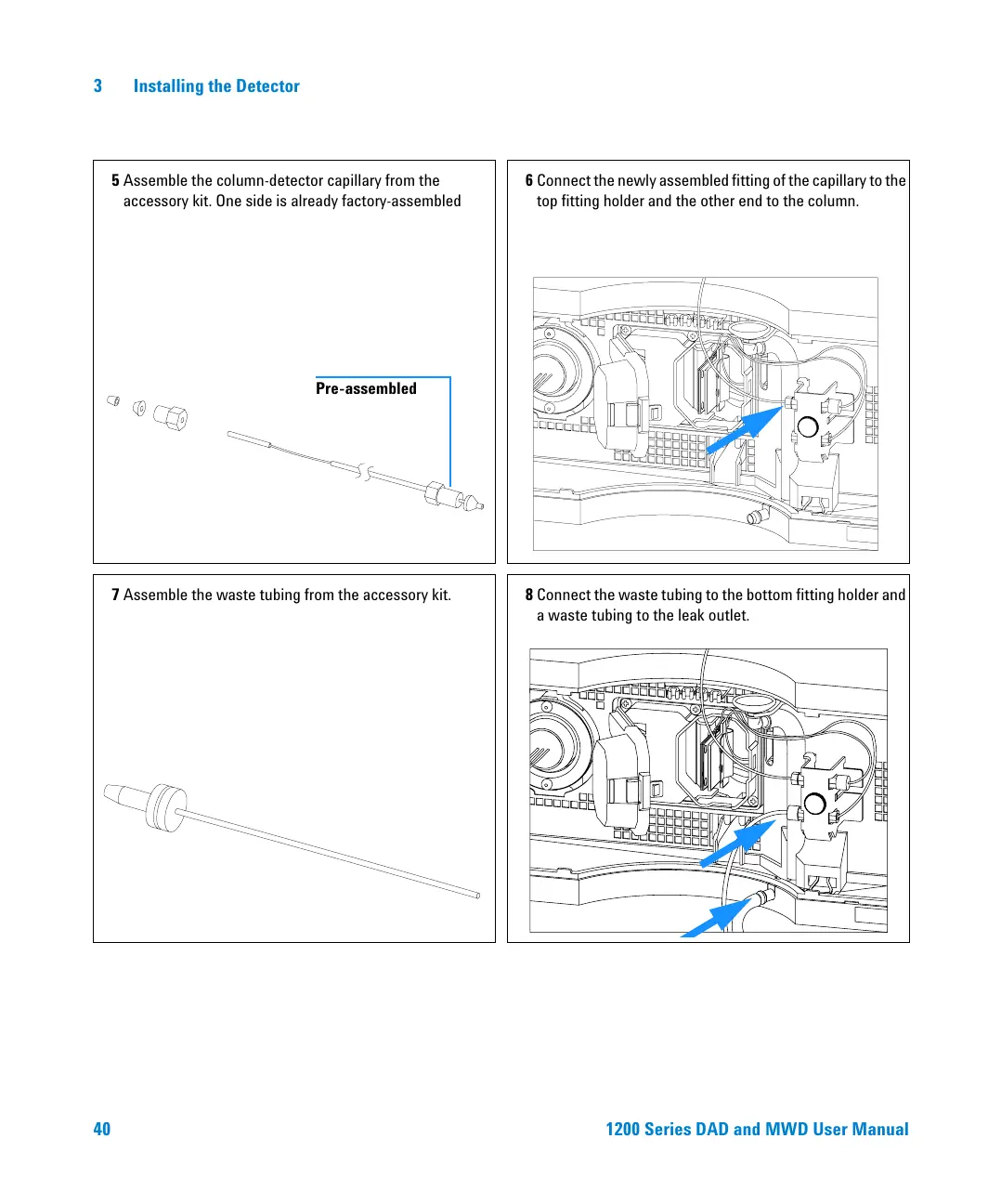

5 Assemble the column-detector capillary from the
accessory kit. One side is already factory-assembled
6 Connect the newly assembled fitting of the capillary to the
top fitting holder and the other end to the column.
7 Assemble the waste tubing from the accessory kit. 8 Connect the waste tubing to the bottom fitting holder and
a waste tubing to the leak outlet.
Pre-assembled
