Identifying Cables
10

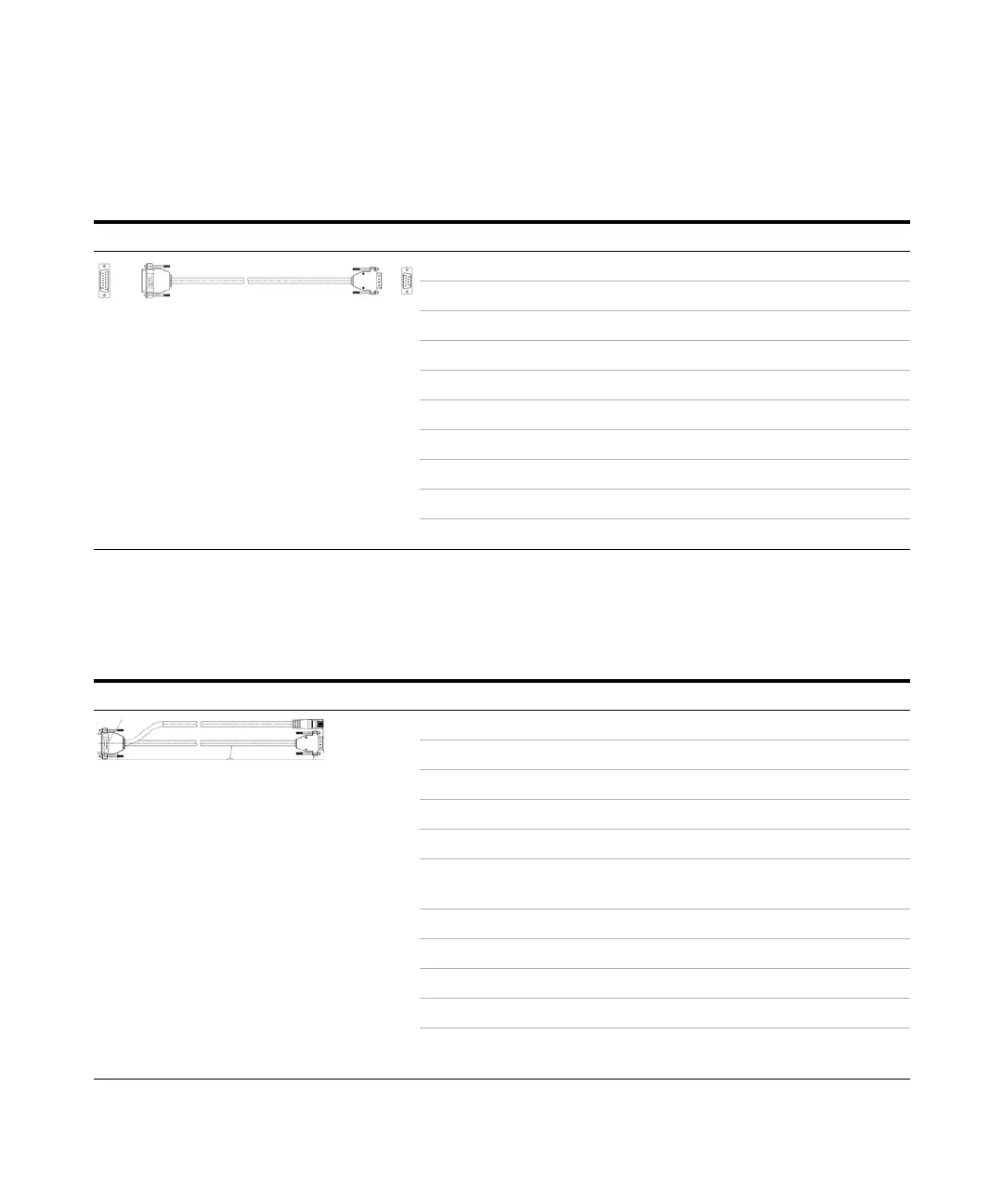

Remote Cables
• 5188-8045 ERI to APG (Connector D_Subminiature 15 pin (ERI), Connector
D_Subminiature 9 pin (APG))
• 5188-8057 ERI to APG and RJ45 (Connector D_Subminiature 15 pin (ERI),
Connector D_Subminiature 9 pin (APG), Connector plug Cat5e (RJ45))
p/n 5188-8045 Pin (ERI) Signal Pin (APG) Active (TTL)
10 GND 1
1Start Request9 Low
2Stop 8 Low
3Ready7 High
5Power on6 High
4 Future 5
6 Shut Down 4 Low
7Start 3 Low
8 Prepare 2 Low
Ground Cable Shielding NC
Table 2 1 5188-8057 ERI to APG and RJ45
p/n 5188-8057 Pin (ERI) Signal Pin (APG) Active (TTL) Pin (RJ45)
10 GND 1 5
1 Start Request 9 High
2Stop8High
3Ready7High
4 Fraction
Trigger
5High4
5 Power on 6 High
6 Shut Down 4 High
7Start3High
8 Prepare 2 High
Ground Cable
Shielding
NC
