Agilent Technologies N8700 - Outline Diagram

Appendix A Specifications
96 Series N8700 User’s Guide

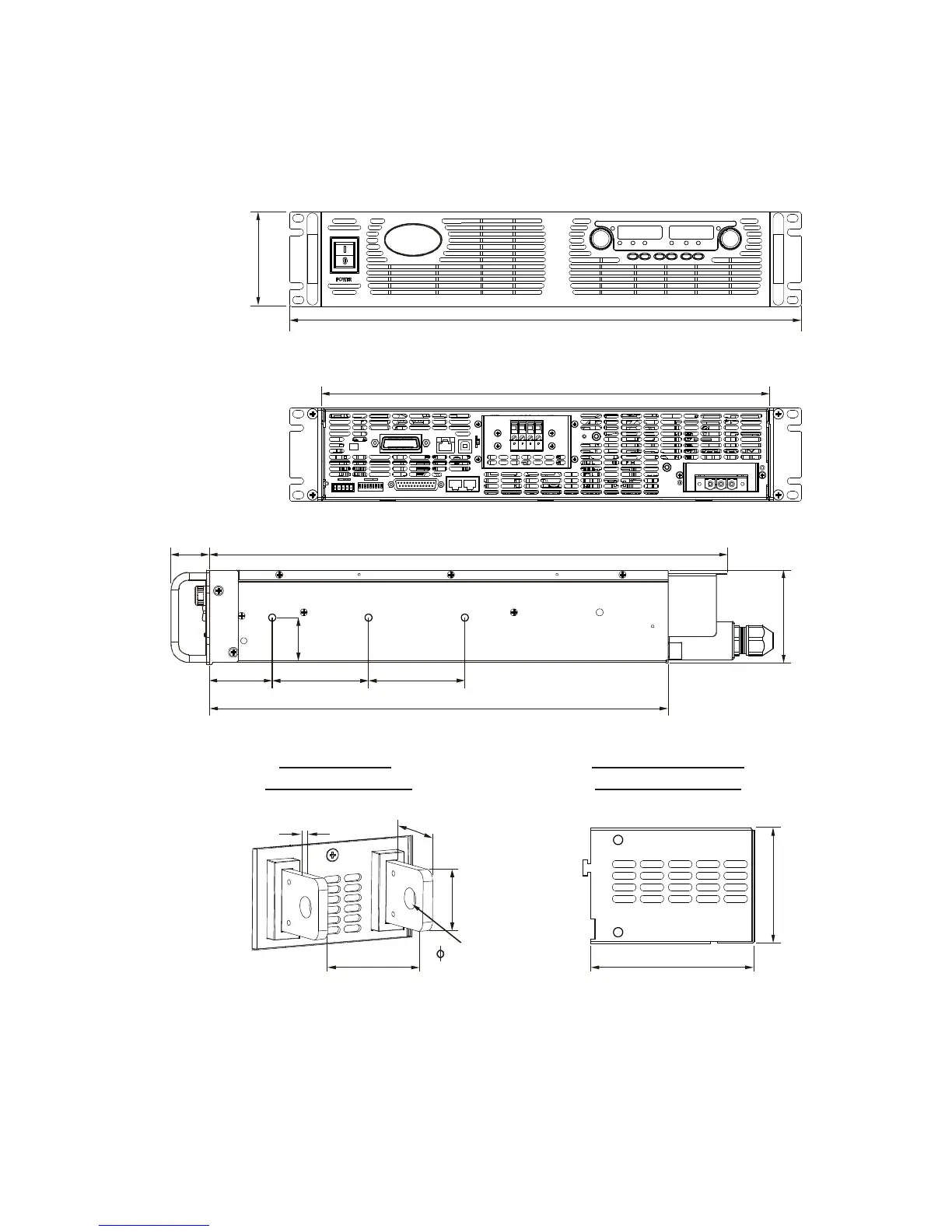

Outline Diagram
NOTES:
Holes marked “A” are for chassis slide mounting.
Use only screws designated #10-32x0.38” maximum.
482.0+/-1.0mm
88.0mm+/-0.3mm
A
60.5mm 92.0mm
92.0mm
42.0mm
442.5+/-1.0mm
497.5mm (150V to 600V models)
Bus-Bar Detail
8V to 100V Models
N8749A
System DC Power Suppl y

PROT FINE LIMIT UVL OCP/488 LAN OUT ON
VOLTAGE DC VOLTS DC AMPS CURRENT
OVP
AA
423.0+/-1.0mm
5.0mm
30.0mm
50.0mm
10.5mm
40
.
0
m
m
86.0mm+/-0.3mm
Output Cover Detail
8V to 100V Models
80.0
mm
108.0mm
39.0mm+/-0.3mm
