Agilent Technologies PSA Series Installation Note

Installation Note E4440-90613 27
Installation Procedure
6. Locate the Coaxial Switch Bracket (E4440-00076) from the kit. Refer to Figure 20.
Install Coaxial Switch SW3 to Bracket with two screws (0515-0666). Torque to
9in-lbs.

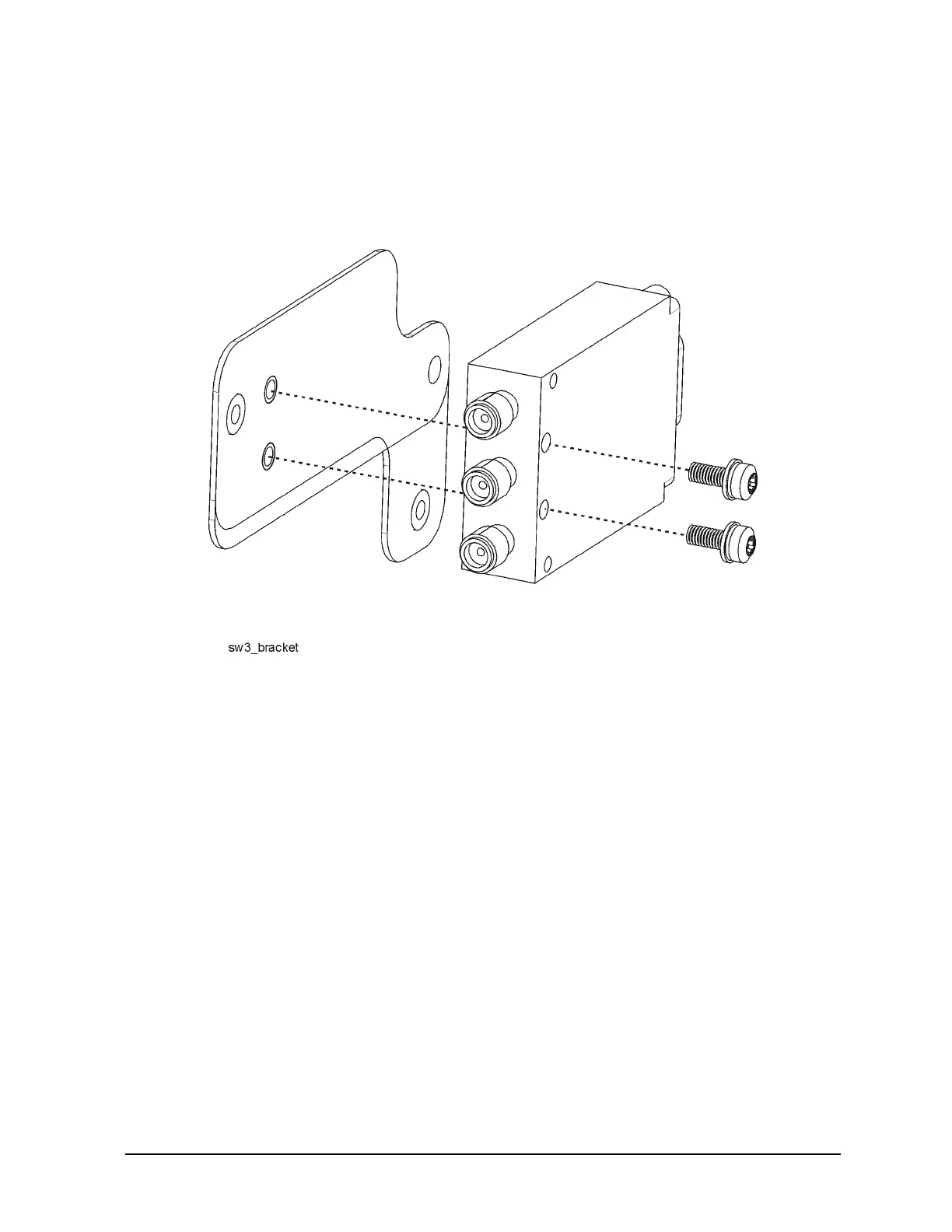

Figure 20 SW3 and Bracket
7. Locate the E4446-60427 Ribbon Cable from the kit. This cable is reference designator
W96. Connect cable W96 to Coaxial Switch SW3.
