Agilent Technologies Turbo-V 81-M Series User Manual

17
Technical Information
Description of the Turbo-V 81-M
194/228 Turbo-V 81-M User Manual / 87-900-983-01 (E)
Description of the Turbo-V 81-M
The Turbo-V 81-M pump is available in four versions. The difference
among the four versions lies purely in the high vacuum connection.
The four versions are:
 Model 969-8901 with ISO 63 high vacuum flange;
 Model 969-8902 with KF 40 NW high vacuum flange;
 Model 969-8903 with ConFlat 4.5" external diameter high vacuum
flange;
 Model 969-8904 with ConFlat 2.75” external diameter high
vacuum flange.
Pump Description
The pump consists of a high frequency motor driving a turbine fitted
with 9 bladed stages and 3 Macrotorr stages. The turbine rotates in
an anticlockwise direction when viewed from the high vacuum flange
end.
The turbine is made of high-strength aluminium alloy, machined from
a single block.

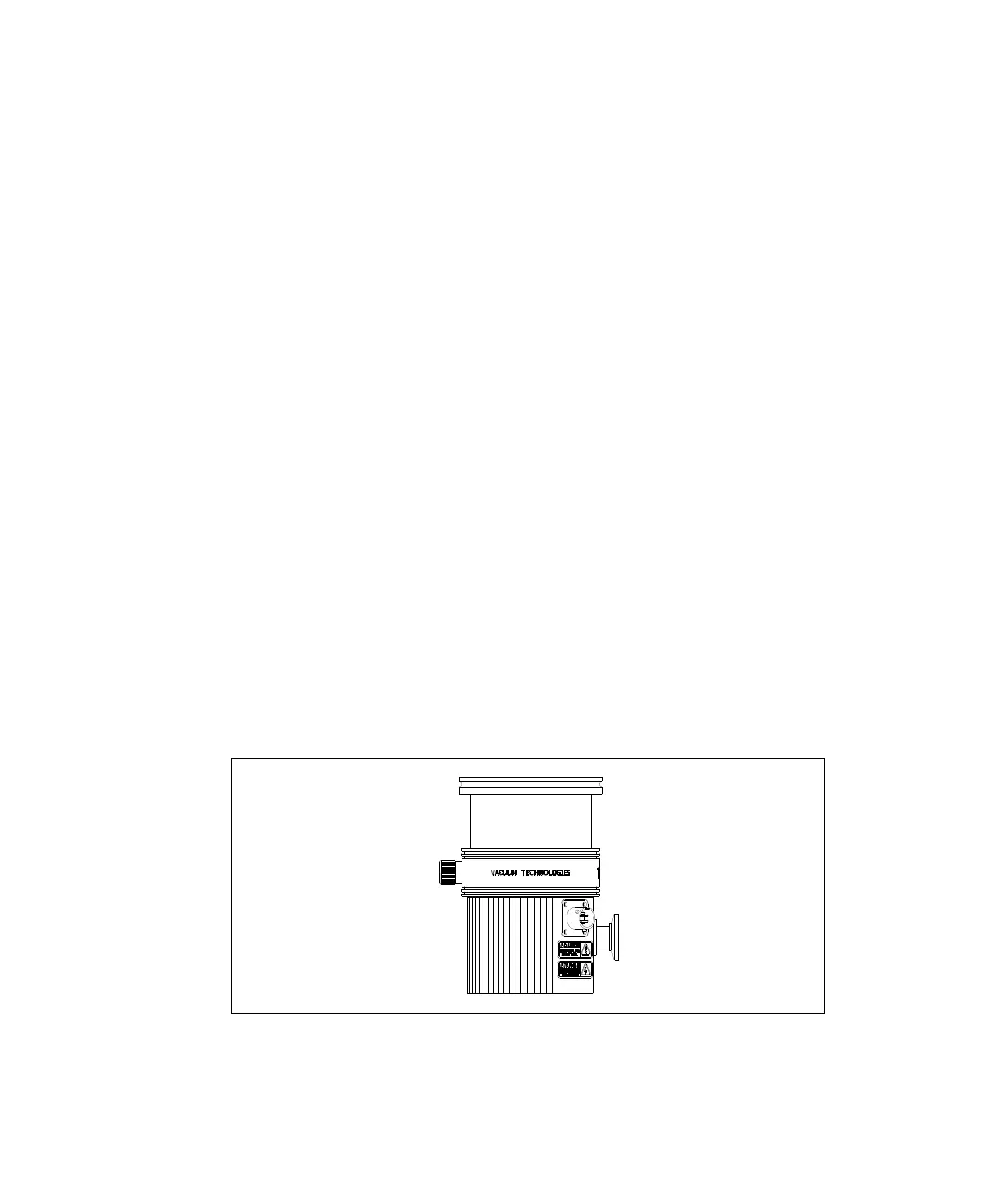

Figure 3 Model 969-8901
