Technical Information 17
Turbo-V 81-M User Manual / 87-900-983-01 (E) 207/228
Air cooling kit installation
An air cooling kit (mod. 969-9290) is available for cooling the pump
during heavy operational conditions and whenever the natural air
convection is not sufficient.

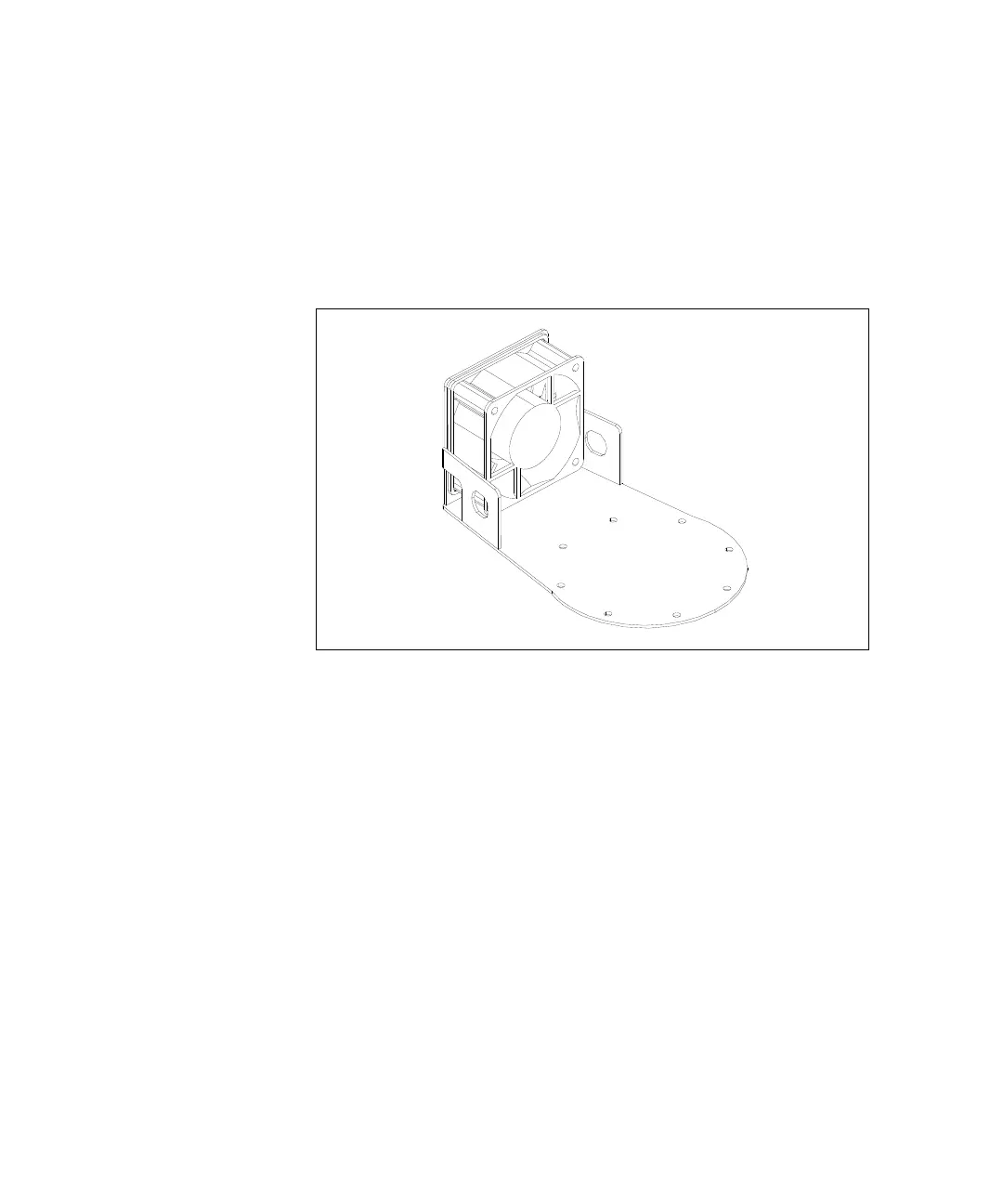

Figure 18
Fan specifications:
air flow: 12.8 l/s (27.1 CFM)
input voltage: 24 Vdc
dimensions: 60 x 60 x 25 mm
power: 2.60 W
The fan bracket is shaped so that it can be mounted close to the
pump and in different positions. To fix the fan to the Turbo-V 81-M
case execute the following procedure (see the following figure):
1 Fix the fan to the suitable bracket by means of the furnished
screws;
2 Fix the bracket to the pump body;
3 Connect the fan supply to the P4 connector of the controller.
