Agilent Technologies Turbo-V 81-M Series User Manual

17
Technical Information
Inlet Screen Installation
202/228 Turbo-V 81-M User Manual / 87-900-983-01 (E)
Inlet Screen Installation

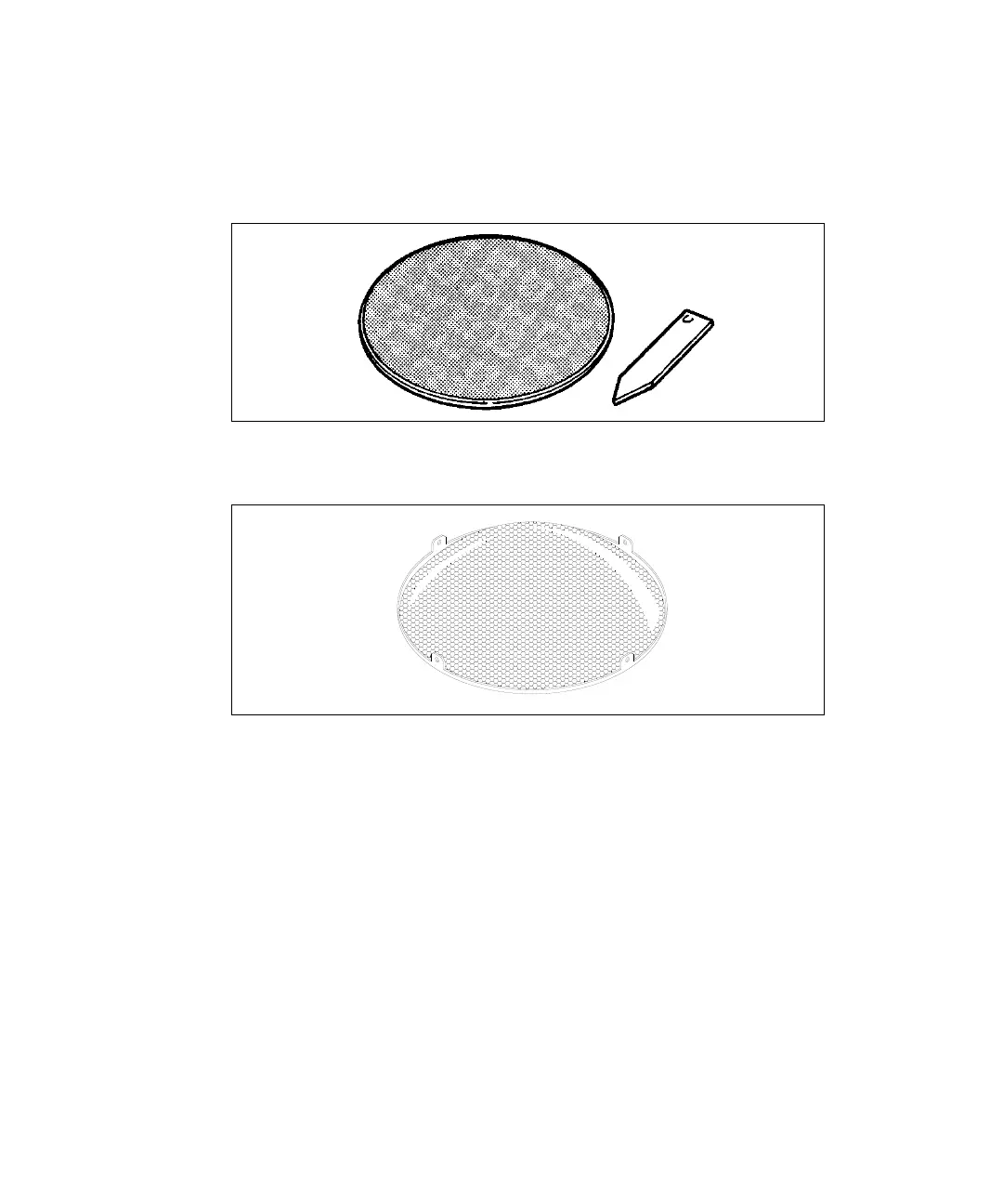

Figure 11
Figure 12
The inlet screens mod. 969-9300 and 969-9309 prevent the blades of
the pump from being damaged by debris greater than 0.7 mm
diameter.
The inlet screen, however, does reduce the pumping speed by about
10%.
The inlet screen is fitted in the upper part of the pump, as shown in
the figure.
