17
Technical Information
Typical Layout Diagram
216/228 Turbo-V 81-M User Manual / 87-900-983-01 (E)

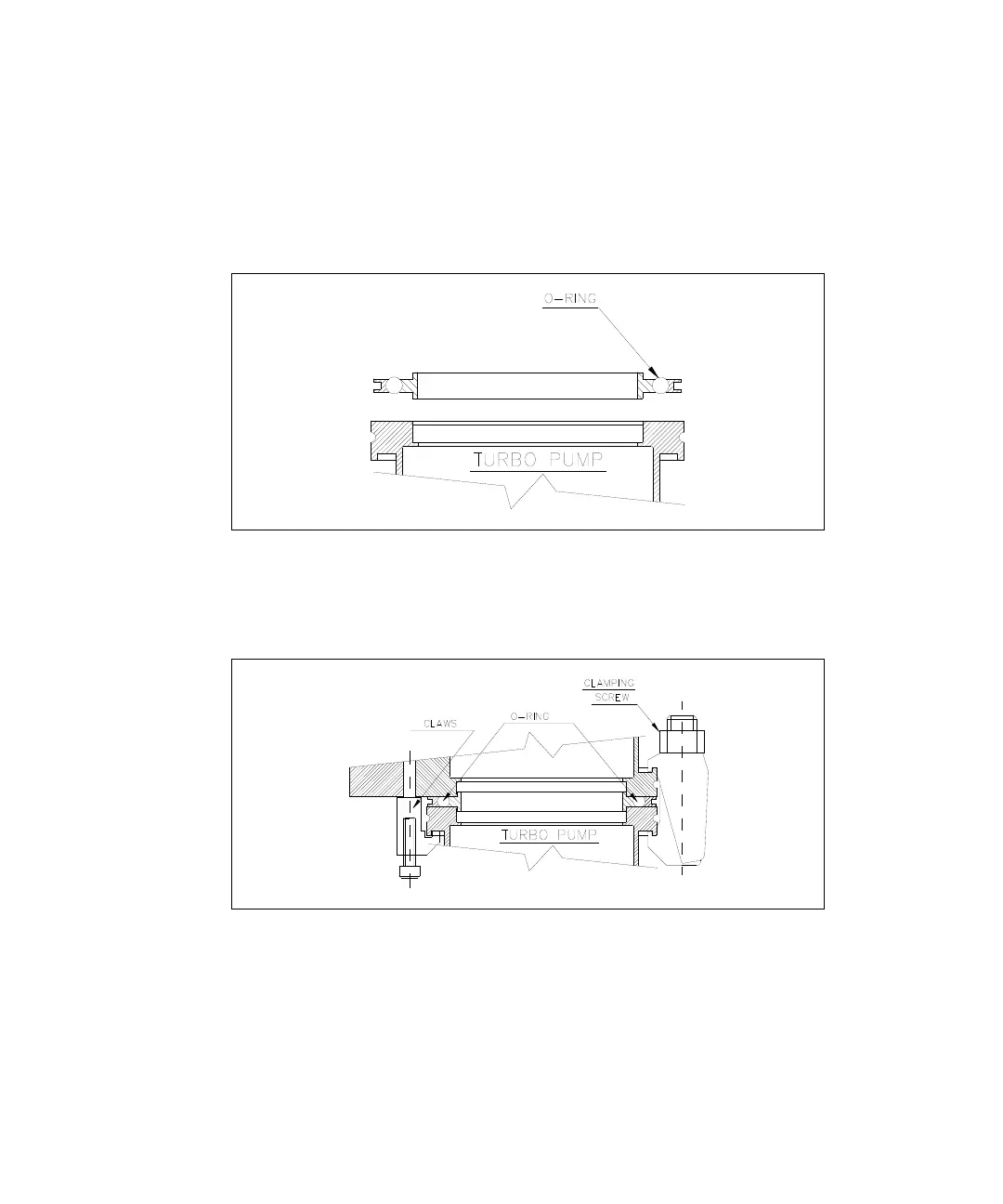

Connection A - High Vacuum Flange
To connect the Turbo-V 81-M pump to the ISO inlet flange, remove
the outer ring and position the centering ring as shown in the figure.
Figure 30
Then fix the two flanges with the clamps or claws as shown in the
figure.
Figure 31
For ConFlat flange connections we recommend using Agilent
hardware.
