Agilent Technologies Turbo-V 81-M Series

Technical Information 17
Turbo-V 81-M User Manual / 87-900-983-01 (E) 201/228

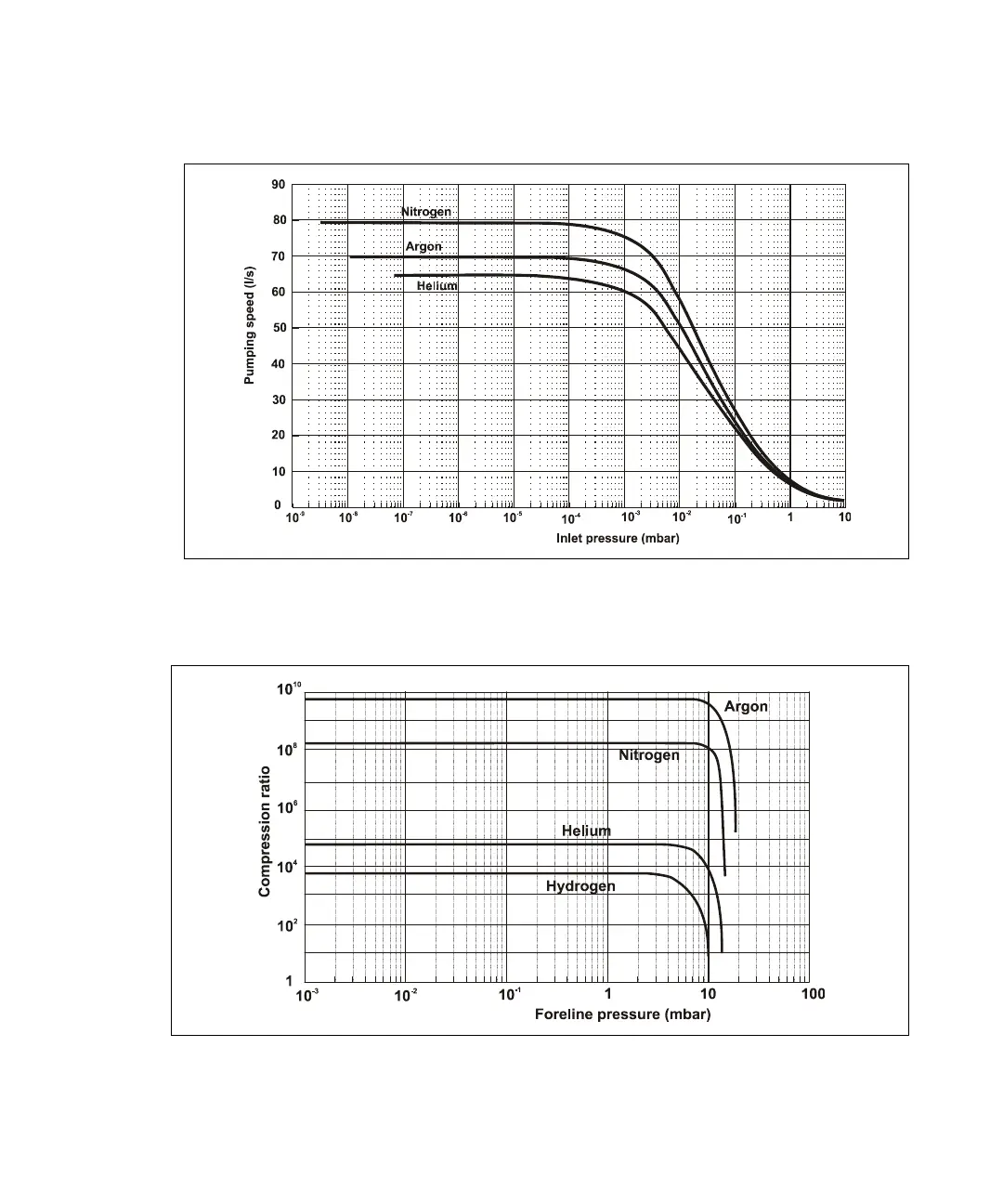

Figure 9 Graph of pumping speed vs inlet pressure with a 8 m
3
/h
mechanical pump
Figure 10 Graph of compression ratio vs foreline pressure
