Agilent Technologies Turbo-V 81-M Series

17
Technical Information
Inlet Screen Installation
204/228 Turbo-V 81-M User Manual / 87-900-983-01 (E)

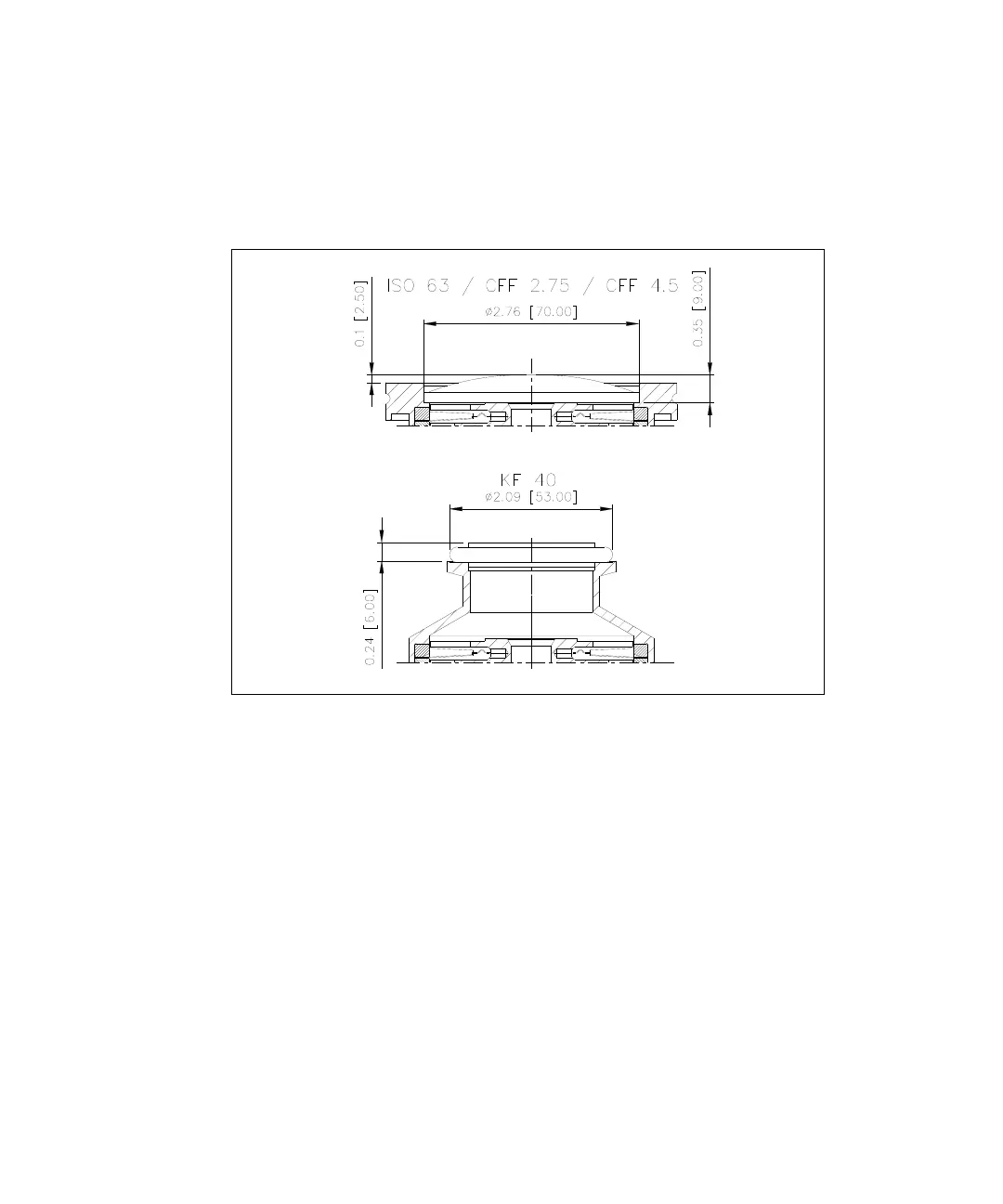

The following figure shows the overall flange dimensions with the
protection screen fitted on pump with ISO flange and pump with CFF
flange (dimensions are in inches [mm]).
Figure 15
