Agilent Technologies Turbo-V 81-M Series

17
Technical Information
Water Cooling Kit Installation
210/228 Turbo-V 81-M User Manual / 87-900-983-01 (E)
The assembled kit must be screwed into the suitable holes of the
pump body with a recommended closing torque of 5 Nm.

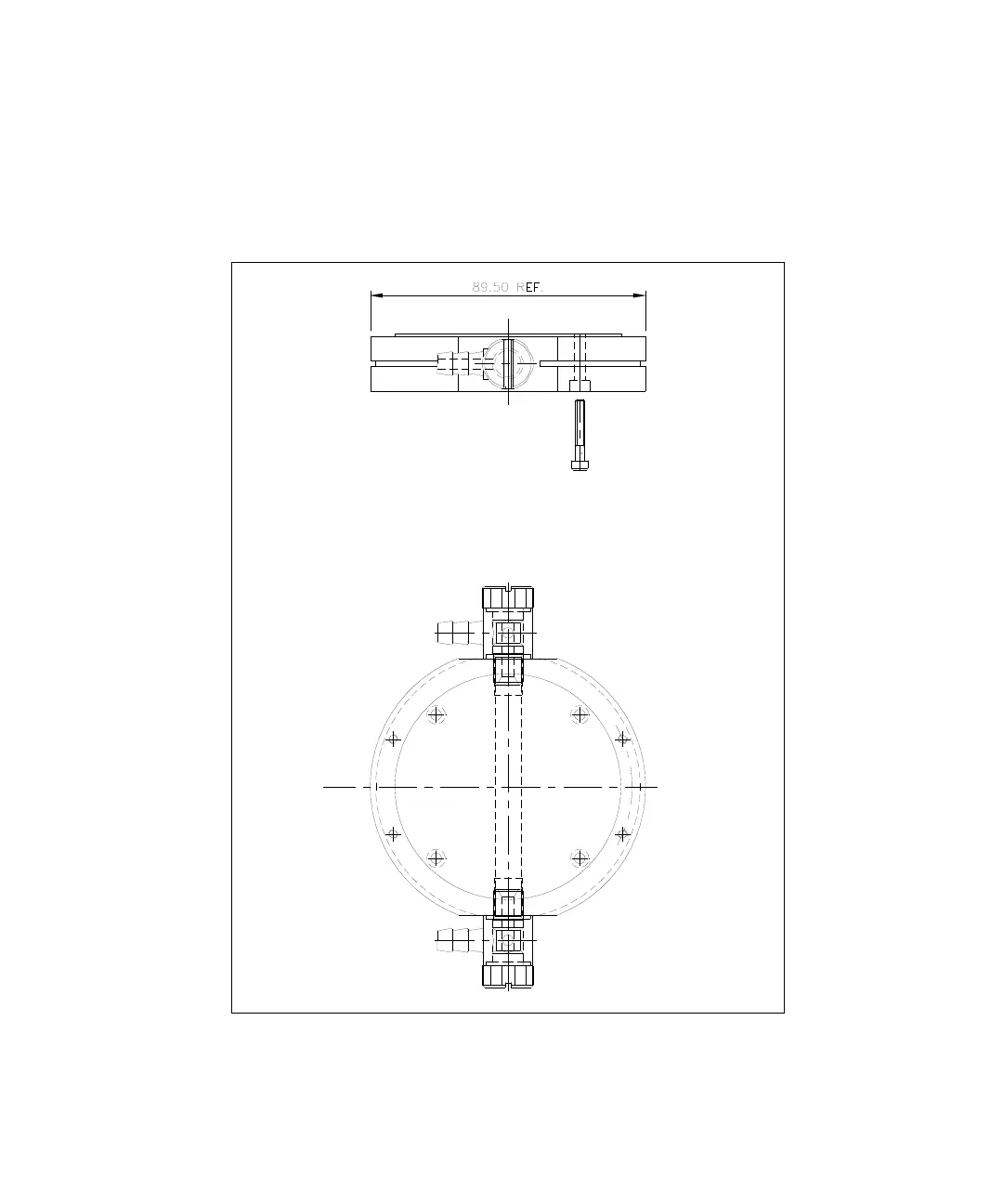

The water kit is assembled as shown in the figure.
Figure 24
