1Getting Started

14 U2000 Series Operating and Service Guide

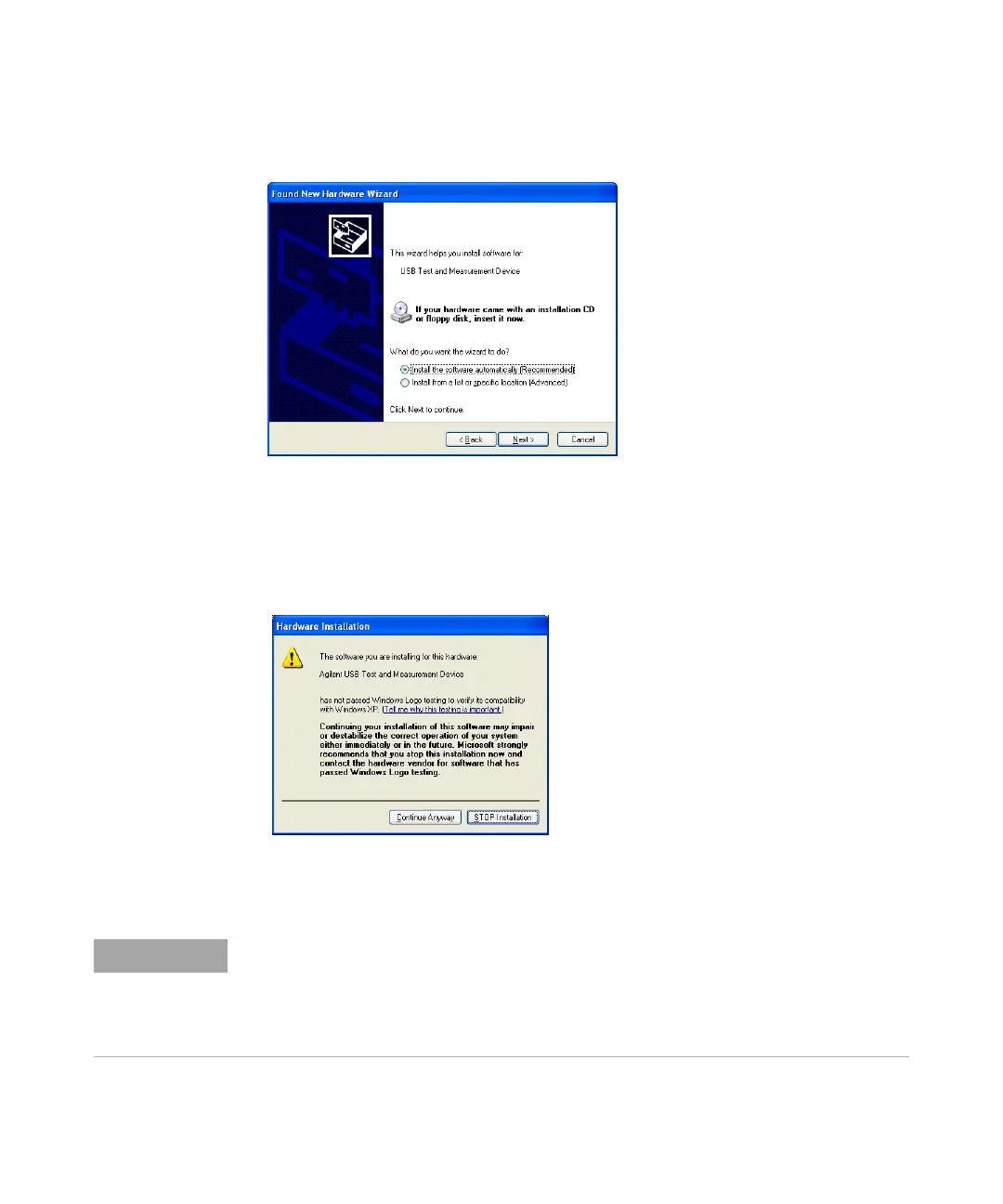

Figure 1-5 Found New Hardware Wizard driver installation

5 A warning message will appear in the Hardware Installation window, as

shown below. Click Continue Anyway to proceed with the installation of

the driver.

Figure 1-6 Hardware installation warning message

NOTE

If you do not wish to receive similar warning message in future, follow the instructions below.

1 Go to Start > Control Panel and double-click System.

2 Select Hardware tab, on the Drivers panel click Driver Signing and the Driver Signing Options

dialog box will appear.

3 Select Ignore to disable the warning message.
