Getting Started 1

U2000 Series Operating and Service Guide 19

Checking the Power Sensor Firmware

There are two ways that can be used to check the firmware revision of

the power sensor:

Agilent IO Libraries Suite 15.5

By using the Agilent IO Libraries Suite version 15.5 or higher, you can

check the model code, serial number, firmware revision, and USB address.

The VISA address is the USB address (see below).

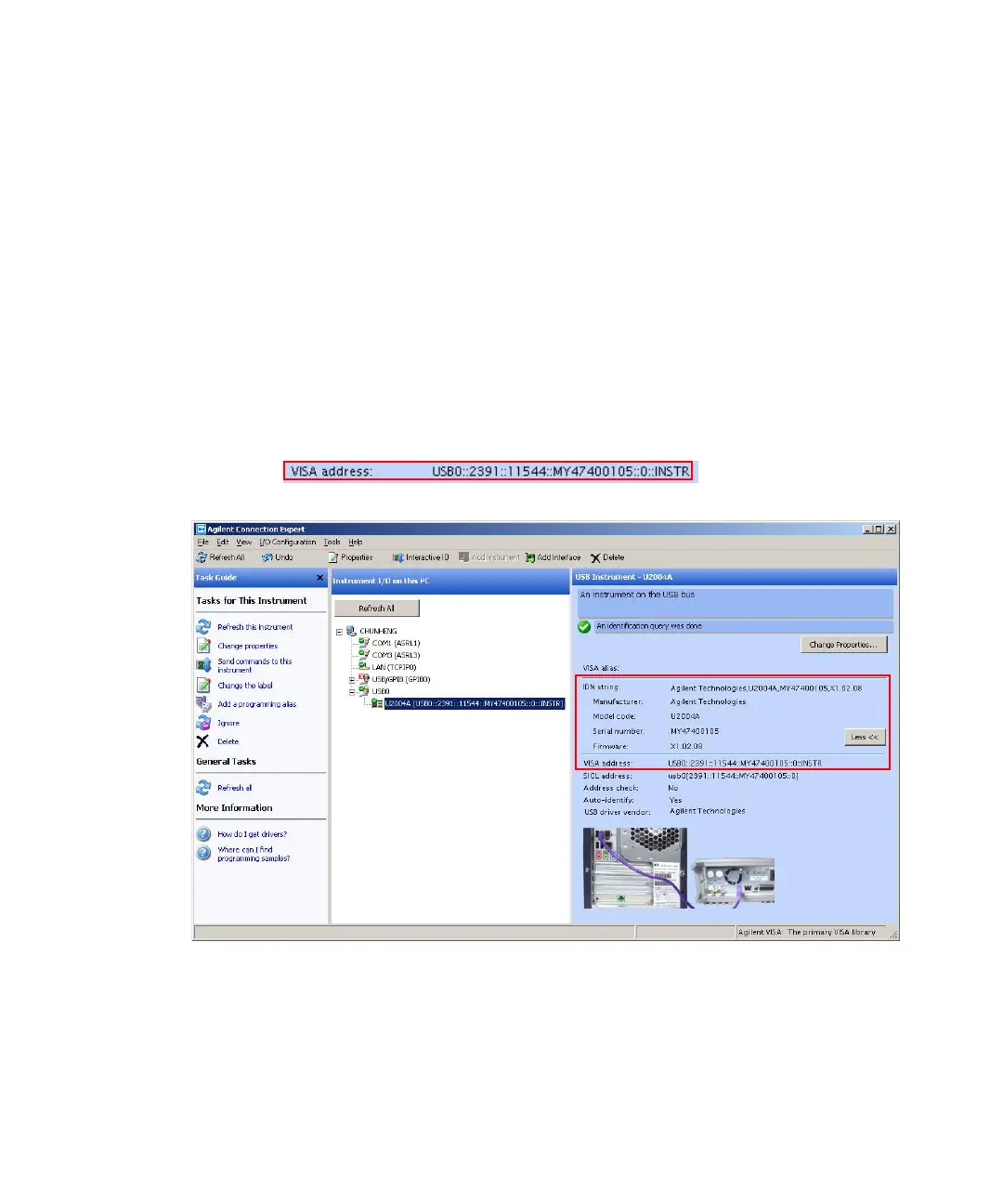

Figure 1-12 Agilent IO Libraries Suite
