1Getting Started

20 U2000 Series Operating and Service Guide

Agilent N1918A Power Analysis Manager

By using the N1918A Power Analysis Manager, you can check the

description, firmware revision, model number, resource ID and serial

number as shown below:

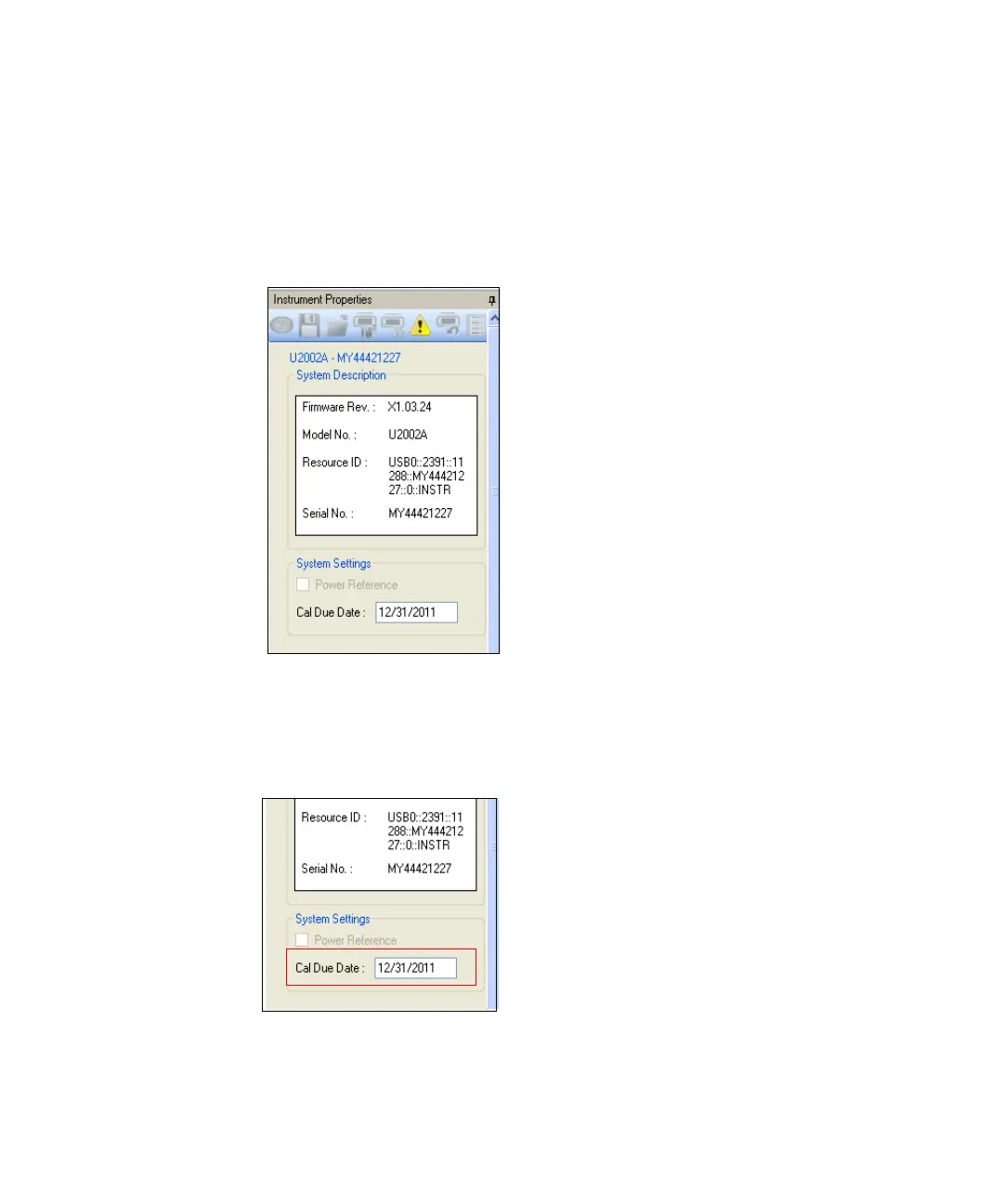

Figure 1-13 Power Analysis Manager Instrument Properties panel

It is advisable to set the calibration due date. Refer to page 18 for more

details.

Figure 1-14 Calibration due date display
