Service 4

U2000 Series Operating and Service Guide 77

Disassembly and Reassembly Procedure

Disassembly Procedure

Disassemble the power sensor by performing the following steps:

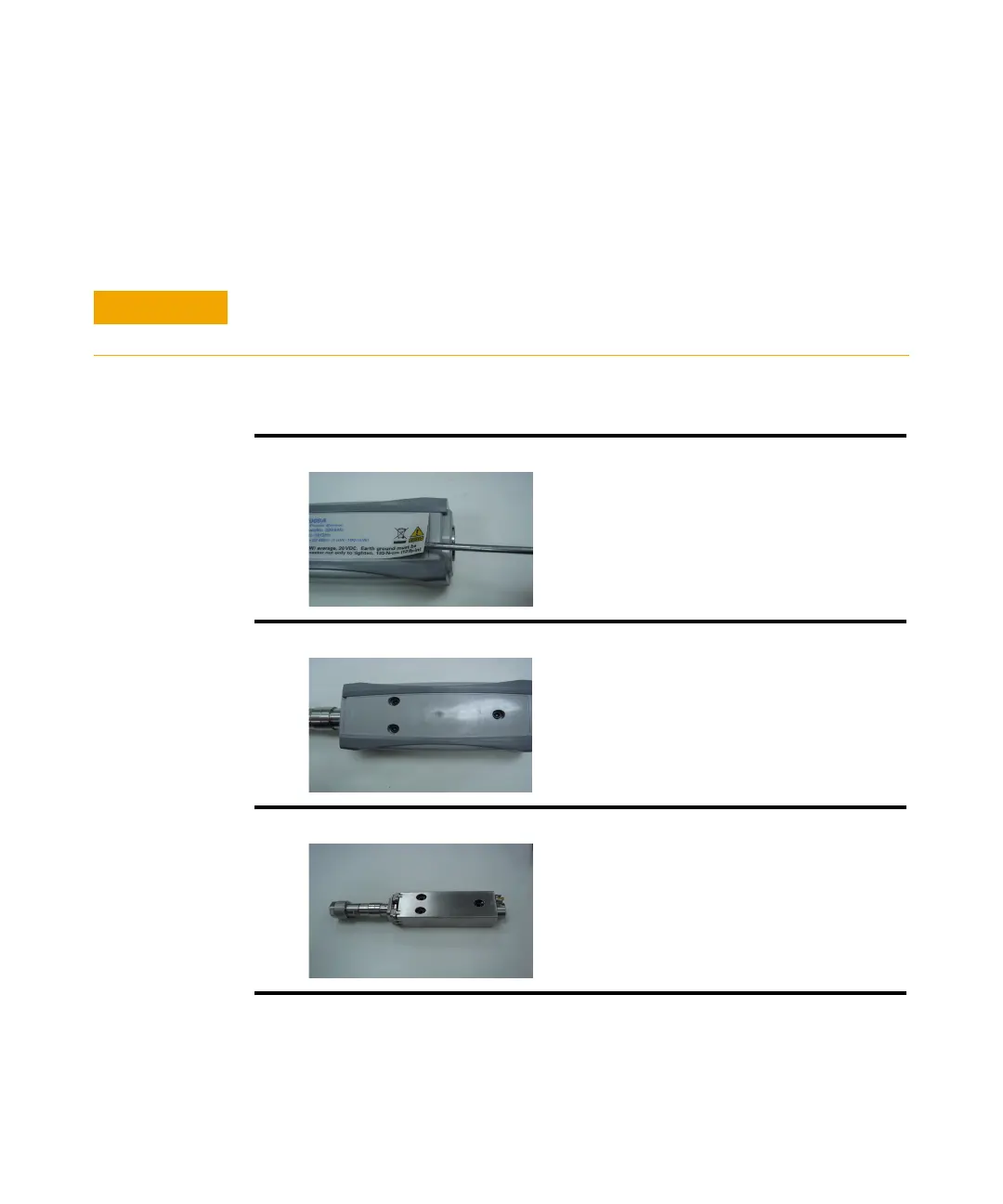

Table 4-11 Disassembly Procedure

CAUTION

Disassemble the power sensor only in a static free workstation. Electrostatic discharge renders the

power sensor inoperative.

1 Remove the top label.

2 Loosen three screws by using

M2 to remove the housing.

3 Replace the defective sensor

module with a new sensor

module. Please refer to

Table 4- 10.
