Getting Started 1

U2000 Series Operating and Service Guide 15

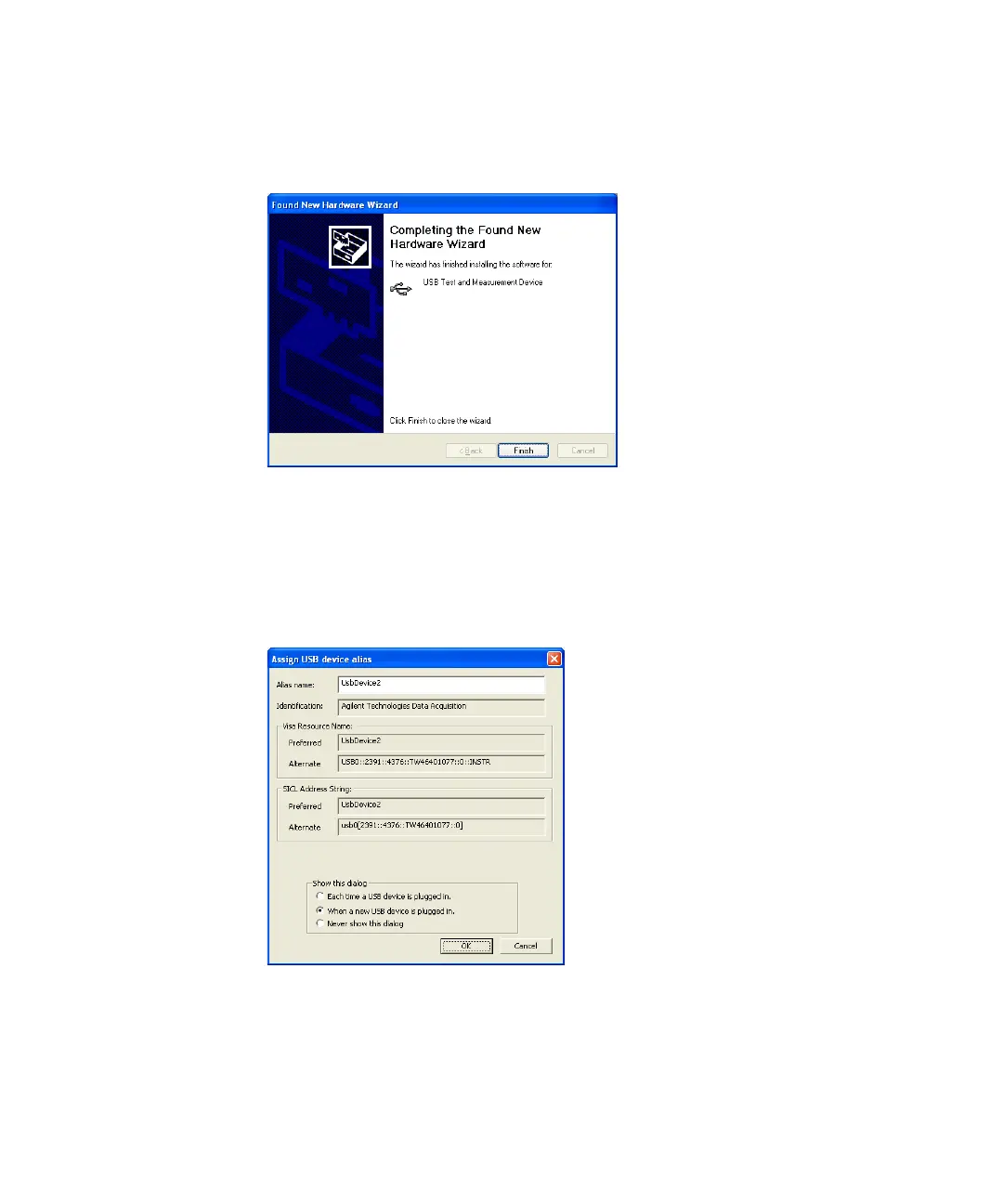

6 Click Finish when the installation has completed.

Figure 1-7 Completing hardware driver installations

7 Once the driver installation has completed, the Assign USB device alias

window may appear as shown below. Each time a USB device is plugged

in, this dialog will be shown. To configure or disable this dialog, select

an options in the Show this dialog panel and click OK.

Figure 1-8 USB device alias configuration
